Features
Powerful Yanmar® Diesel Engine Delivers Plenty of Power
The Yanmar® diesel engine has a high-torque reserve that provides plenty of power under heavy load. This 4-cylinder engine features lower levels of exhaust emissions and reduced noise levels. It meets EPA Final Tier 4 (FT4) emission standards. The engine uses the latest technologies to optimize fuel economy and improve control and accuracy.
Styling Improves Visibility and Serviceability

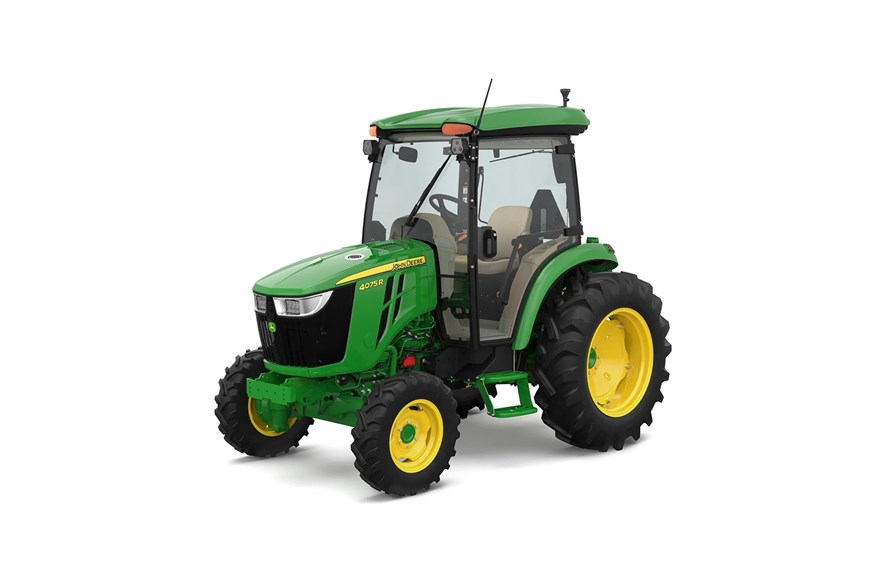

The bold styling of the 4M and 4R Tractors enhances both appearance and functionality, echoing the design of larger agricultural models. Key features include an aggressively sloped hood for better visibility, hybrid exhaust, and easy access to service points like the battery and engine.
Maximize Productivity With an eHydro™ Transmission
The eHydro™ transmission offers seamless operation with an infinitely variable ground speed, no clutching for direction changes, and integrated Twin Touch™ foot controls for quick and easy forward/reverse movement. It maximizes tractor productivity, reduces powertrain shock loads, and enhances operator comfort by providing high torque for startup.
Engine
| Engine Model | 4TNV86CHT-MJT |
| Engine Family | EYDXL2.09HDA, FYDXL2.09HDA, GYDXL2.09HDA |
| Emissions Certifications | Final Tier 4 |
| Displacement | 127 cu in. |
| Aspiration | Turbocharged and Intercooled |
| Number of Cylinders | 4 |
| Cylinder Liners | Cast-in-block |
| Rated Engine Speed | 2600 rpm |
| Rated Engine Power | 75 hp |
| Rated Engine Power | 56 kW |
| Rated Engine Power | 75 PS |
| Compression Ratio | 17.3:1 |
| Lubrication | Pressurized |
| Cooling System Type | Liquid |
| Fuel Type | Diesel; High pressure common rail direct injection |
| Air Cleaner Type | Dry Type with Electronic Restriction Indicator |
Hydraulics
| Hydraulic System Type | Open center |
| Auxiliary Hydraulic Features | Up to six rear remote control valves available |
Operator Station
Rear Axle
Machine Configuration
| Wheel or Track Configuration | Wheel |
Tires
| Front Tires Size | 8-16 (Farm), 27x10.5-15 or 27x12LL-15 (Turf), 10-16.5 (Industrial), 250/75R16 (Snow) |
Steering & Brakes
| Primary Brakes | Multi-plate wet disc |
Rear Hitch
| Draft Control Sensing | Position control |
Rear Power Take-Off (PTO)
| Economy PTO Speeds | 540 rpm |
| Engagement Method | Independent |
| PTO Clutch | Wet disc |
Electrical System
| Battery Cold Cranking Amps | 770 CCA |
| Alternator Capacity | 75 amp |
Transmission
| Creeper | SpeedMatch standard |
| Clutch | Wet disc |
| Cruise Control | Standard |
