Features
Variety of Disk Blades for Optimal Performance

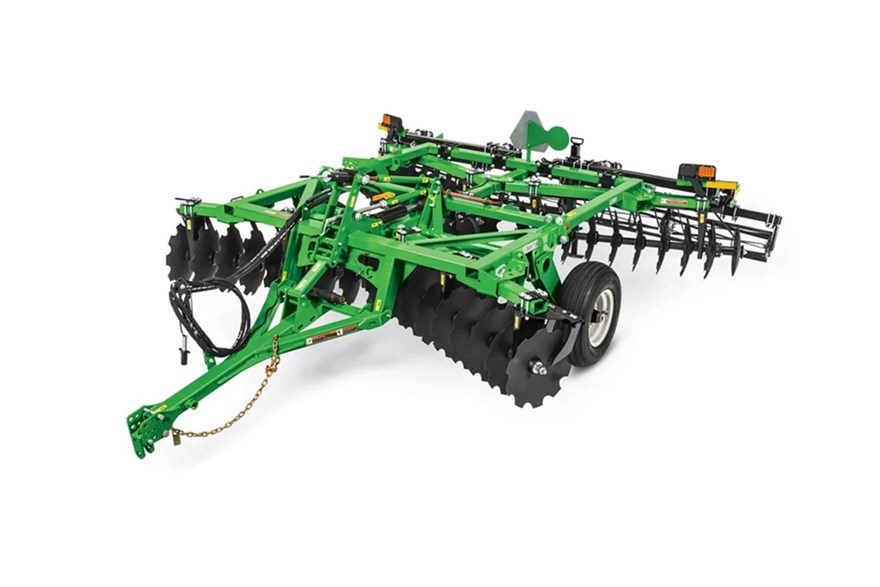

The TM14D offers multiple blade configurations like notched and smooth blades for diverse soil conditions. It supports 7.5-in. or 9-in. (19-cm or 23-cm) spacings, providing flexibility in seedbed preparation and effective residue handling, suitable for various soil types.
Disk Depth and Leveling
Disk depth and leveling are managed manually with crank adjustments. The depth control crank modifies how deep the disks penetrate, while the front-to-rear leveling crank prevents ridges, ensuring a smooth finished field surface.
Easy Disk Gang Adjustments
This harrow allows simple gang angle adjustments with an ergonomic pin design. Operators can change the angle for optimal soil penetration or smoothing, adapting efficiently to different residue levels and soil conditions without tools.
Field Install Kit
| Middle Breaker Kit | Optional |
| Furrow Filler Kit | Optional |
| Scraper Kit | Optional |
| Rolling Basket | Optional |
Dimensions
| Working Width | 7.5 Spacings: 138; 9 Spacings: 145 in. |
| Working Width | 7.5 Spacings: 350.5; 9 Spacings: 358.3 cm |
| Overall Width | 7.5 Spacings: 138.25; 9 Spacings: 145.25 in. |
| Overall Width | 7.5 Spacings: 351.2; 9 Spacings: 369 cm |
| Overall Height | 64.5 in. |
| Overall Height | 163.8 cm |
| Overall Length | 7.5 Spacings: 170.25; 9 Spacings: 172 in. |
| Overall Length | 7.5 Spacings: 432.4; 9 Spacings: 436.9 cm |
| Weight Per Disk | 7.5 Spacings: 82; 9 Spacings: 91-96 lb. |
| Weight Per Disk | 7.5 Spacings: 37.2; 9 Spacings: 41.3-43.5 kg |
| Shipping Weight | 7.5 Spacings: 3257; 9 Spacings: 3225-3391 lb. |
| Shipping Weight | 7.5 Spacings: 1477.4; 9 Spacings: 1462.8-1538 kg |
| Operating Weight | 7.5 Spacings: 2932; 9 Spacings: 2900-3066 lb. |
| Operating Weight | 7.5 Spacings: 1330; 9 Spacings: 1315.4-1390.7 kg |
Gang Configurations
| Disk Type | Front: Notched; Rear: Notched or Smooth (22 only) |
| Disk Diameter | 7.5 Spacings: 20; 9 Spacings: 32 |
| Disk Thickness | 20 Disk: 0.138 in.; 22 Disk: 0.157 in. |
| Disk Spacings | 7.5 Spacings or 9 Spacings |
| Front Gang Angle Independent Left To Right | 12,14,16,18,20,22 |
| Rear Gang Angle Independent Left To Right | 10,12,14,16,18,20 |
| Tool-Less Angle Adjustment | Yes |
| Gang Axle | 1.125 square |
| Number Of Disks | 7.5 Spacings: 36; 9 Spacings: 32 |
Tires
| Type | Pneumatic |
| Size | 11L-15, 8 ply |
Miscellaneous
| Safety Chain | Standard |
| Jack | Standard |
| Transport Lights | N/A |
| Transport Wheel Locking Device | Standard |
| Hydraulic Hoses Support And Storage | Standard |
Hitch
| Category | 1 & 2 |
| Type | Drawn Level Lift with Clevis |
Bearing hanger
| Type Of Hanger | Rigid |
| Type Of Bearing | Self Aligning, Greasable Ball Bearing |
Working Adjustments
| Working Depth Control | Mechanical stopper with depth indicator |
| Working Depth Adjustment | 0-6 |
| Pitch Control | Crank Handle with Indicator |
Tractor Requirements
| Engine HP Range | 41-59.7 (55-80) kW |
