Features

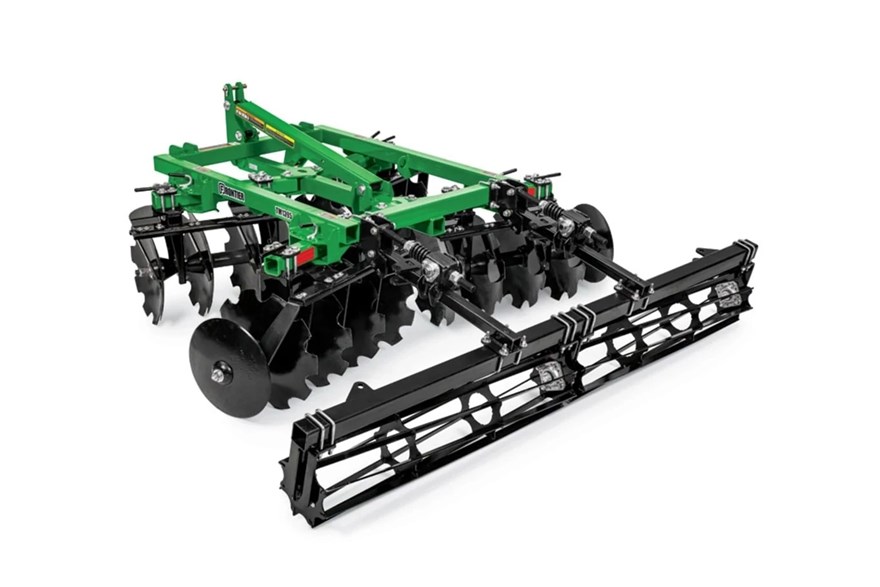

Rolling Basket for Improved Field Conditions
To help break up clods for improved levelness and uniformity of field finish, an 11-in. (27.9-cm) diameter rolling basket can be added to the TM13. With just a wrench, the down pressure of the rolling basket can be adjusted to suit the conditions.
Additional Kits Available
A scraper kit (as pictured) is available to improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the scraper kit. The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.
Easy Gang Angle Adjustments
Each disk gang can be adjusted individually without tools for ease of use. This allows precise disk angle settings to match different soil conditions. The mismatched front and rear gang angles enable straighter tracking for a smoother finish.
Disks
| Spacing | 9 in. |
| Spacing | 22.9 cm |
| Quantity | 20 |
| Notched (Front) Notched (Rear) | Optional |
| Notched (Front) Smooth (Rear) | Optional |
Dimensions
| Working Width | 96 in. |
| Working Width | 243.8 cm |
| Overall Width | 98.375 in. |
| Overall Width | 250 cm |
| Overall Height | 48 in. |
| Overall Height | 122 cm |
| Overall Length | 72.75 in. |
| Overall Length | 185 cm |
| Weight Per Disk | 65 lb. |
| Weight Per Disk | 29.5 kg |
| Operating Weight | 1346 lb. |
| Operating Weight | 610.5 kg |
Weight
| Operating Weight | 1346 lb. |
| Operating Weight | 610.5 kg |
| Weight Per Disc | 65 lb. |
| Weight Per Disc | 29.5 kg |
Disk Hillers
| Disk Spacing | 9 in. |
| Disk Spacing | 22.9 cm |
| Disk Thickness | 0.16 in. |
| Disk Thickness | 4 mm |
| Disk Diameter | 22 in. |
| Disk Diameter | 55.88 cm |
| Number Of Disks | 20 |
| Notched (Front) / Notched (Rear) | Optional |
| Notched (Front) / Smooth (Rear) | Optional |
Gang axle
| Diameter | 1.125 in. |
| Diameter | 2.86 cm |
| Type | Square |
| Material | AISI 1045 |
Hitch
| Category | Category 1 & Category 2 |
| iMatch / Quick Hitch | Yes |
| Type | Integral |
| Height To Hitch Pins | 20 in. |
| Height To Hitch Pins | 50.8 cm |
Gang angles
| Front Gang Angles | 6,11,16,21 degree (angle) |
| Rear Gang Angles | 4,9,14,19 degree (angle) |
Bearing hanger
| Bearing Type | 1 1/8 SQ with steel flanges |
| Material Thickness | 3/16 U-shape x 3/8 top plate |
Tractor Requirements
| Engine HP Range | 33.6-74.6 (45-100) kW |
Setup Time
| Approximate Assembly Time | 30 minutes |
| Scraper Kit | Option |
| Furrow Filler Kit | Option |
| Rolling Basket | Option |
Tubing
| Gang / Frame Tubing | 3x3 square |
Construction
| Gang / Frame Tubing | 4x3 rectangle |
