Features

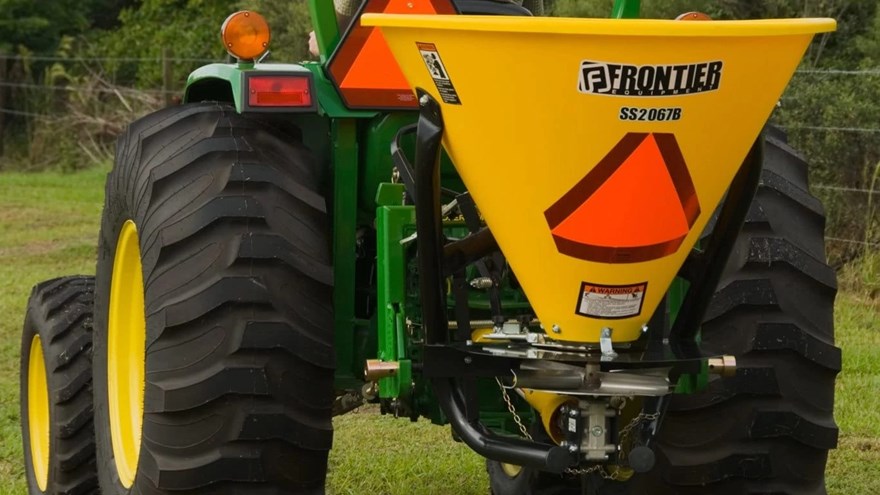

SS20 Series Hitching Capabilities
The broadcast spreader is compatible with tractors featuring Category 0 and Category 1 3-point hitches.
Hopper-Enhanced Technology Ensures Long Wear Life
The spreader's hopper is crafted from polyethylene, which resists moisture and chemicals. This ensures a longer wear life, even in harsh conditions. A seamless conical design promotes quick, easy flow, aided by a standard fixed agitator.
SS20 Series Power Take-off (PTO) Driven Broadcast Spreaders
The spreader features a 540-rpm PTO. It comes with a sealed, heavy-duty gearbox containing extreme pressure (EP) grade grease, ensuring robust and reliable performance.
Dimensions
| Hopper Loading Height | 101.6 cm |
| Hopper Loading Height | 40 in. |
| Hopper Width | 42 in. |
| Hopper Width | 106.7 cm |
Weight
| Shipping (Per Pair) | 320 lb. |
| Shipping (Per Pair) | 145.1 kg |
| Hopper Capacity | 307.5 kg |
| Hopper Capacity | 678 lb. |
| Machine | 56.7 kg |
| Machine | 125 lb. |
Range
| Swath Spread | 14 m |
| Swath Spread | 46 ft |
PTO
| Tractor Horsepower Range | 16-55 hp |
| Tractor Horsepower Range | 12-41 kW |
| Shaft Category | 1: Heavy-duty shielded; 3.5 cm 1.375 in. |
| RPM | 540 rpm |
Hopper
| Volume Capacity | 10.6 cu ft |
| Volume Capacity | 0.3 m³ |
| Material | Polyethylene |
Warranty
Hitch
| iMatch™ Compatible | Optional |
| Type | 3-point, Category 1 |
Setup Time
