Features

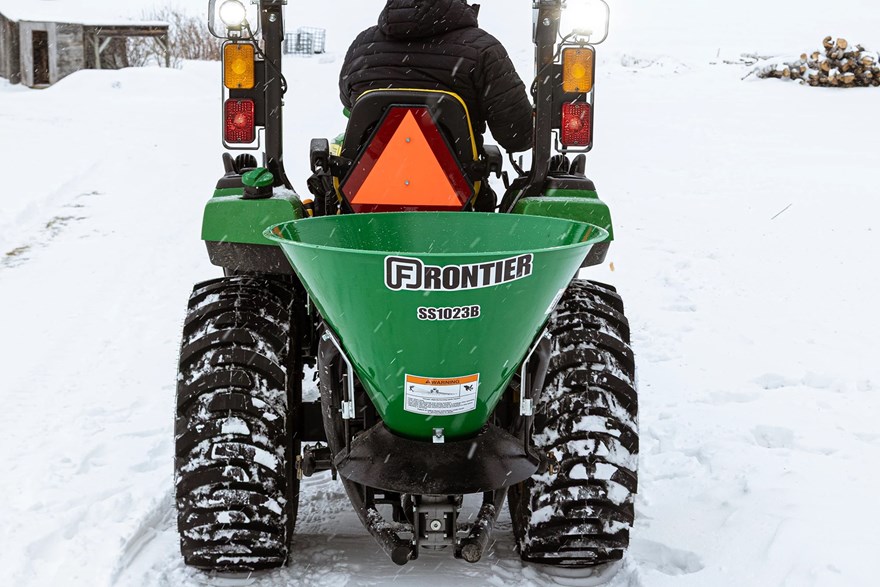

Power Take-off (PTO) Driven Broadcast Spreaders
With the PTO-Driven Broadcast Spreader, you can spread seed, granular fertilizers, crystalline herbicide, pesticide, sand, and salt at 540 RPM’s and in three diverse patterns.
Hitching Capabilities
The broadcast spreader is compatible with tractors featuring Category 0 and 1 3-point hitches.
Spreader Strong Enough for Rough Handling and Heavy Use
The one-piece, seamless, all-steel hoppers are strong enough to endure rough handling and heavy use. Each unit features heat-treated paint to prevent corrosion and comes standard with a fixed agitator and shielded driveline gearbox.
Dimensions
| Hopper Loading Height | 86.4 cm |
| Hopper Loading Height | 34 in. |
| Hopper Width | 35 in. |
| Hopper Width | 88.9 cm |
Weight
| Shipping (Per Pair) | 290 lb. |
| Shipping (Per Pair) | 131.5 kg |
| Hopper Capacity | 164.2 kg |
| Hopper Capacity | 362 lb. |
| Machine | 46.3 kg |
| Machine | 102 lb. |
Range
| Swath Spread | 7 m |
| Swath Spread | 23 ft |
PTO
| Tractor Horsepower Range | 16-45 hp |
| Tractor Horsepower Range | 12-33.5 kW |
| Shaft Category | 1: Heavy-duty shielded; 3.5 cm 1.375 in. |
| RPM | 540 rpm |
Hopper
| Volume Capacity | 5.6 cu ft |
| Volume Capacity | 0.16 m³ |
| Material | Steel |
