Features
Compression Springs

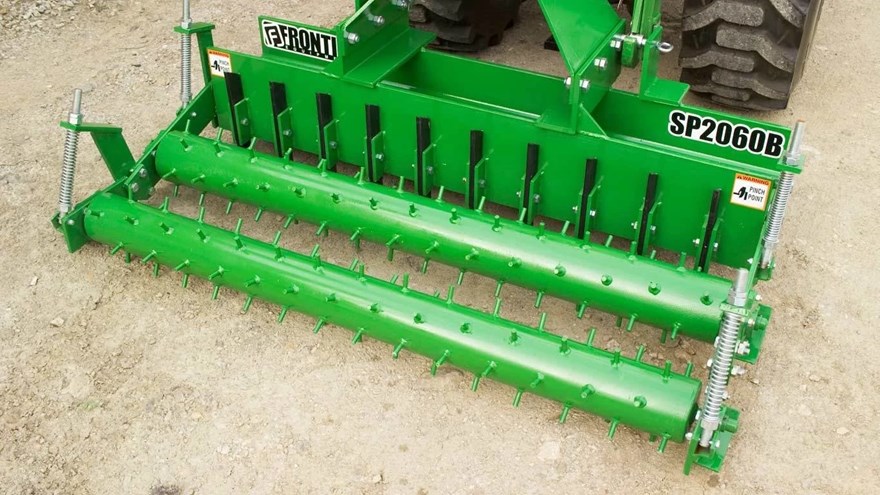

The SP20 Series Soil Pulverizers have two 160-lb. (72.6-kg) compression springs to keep the roller in contact with the ground and force the spikes into the soil down to 1-in. (25.4-mm) deep.
iMatch™ Quick-Hitch Compatibility
The iMatch™ quick-hitch system converts the tractor's 3-point hitch to fixed hooks for a super-quick connection.
Cutting Teeth for Soil Preparation
The SP20 Series Soil Pulverizers feature a double set of 0.5-in. x 2-in. (12.7-mm x 50.8-mm) bar-type cutting teeth. Their staggered mounting slices the surface every 2.8-in. (71.1-mm) for superior soil preparation. The teeth are reversible for extra life.
Scarifying Teeth
| Scarifying Teeth - Rear Quantity | 12 |
| Scarifying Teeth - Front Quantity | 13 |
| Rear Dimensions | 1.3x5.1 cm |
| Rear Dimensions | 0.5x2 in. |
| Front Dimensions | 0.5x2 in. |
| Front Dimensions | 1.3x5.1 cm |
| Type Of Scarifying Teeth | Bar |
Dimensions
| Height | 39 in. |
| Height | 99.1 cm |
| Working Width | 182.9 cm |
| Working Width | 70 in. |
| H-Beam | 25.4x25.4 cm |
| H-Beam | 10x10 in. |
Weight
| Operating Weight | 308 kg |
| Operating Weight | 679 lb. |
| Shipping Weight | 729 lb. |
| Shipping Weight | 330.7 kg |
Tractor Compatibility
| Tractor Horsepower | 22.4-33.6 kW |
| Tractor Horsepower | 30-45 hp |
Compression Springs
| Down Pressure Per Spring | 160 lb. |
| Down Pressure Per Spring | 72.6 kg |
| Quantity | 2 |
Roller
| Roller Pin Quantity | 106 |
| Bearing Size | 2.5 cm |
| Bearing Size | 1 in. |
| Roller Pin Size | 0.38x1 in. |
| Roller Pin Size | 1x2.5 cm |
| Roller Diameter | 5.56 in. |
| Roller Diameter | 14.1 cm |
Second Roller Assembly (Optional)
| Spring Down Pressure Per Spring | 36.3 kg |
| Spring Down Pressure Per Spring | 80 lb. |
| Spring Quantity | 2 |
