SB1388

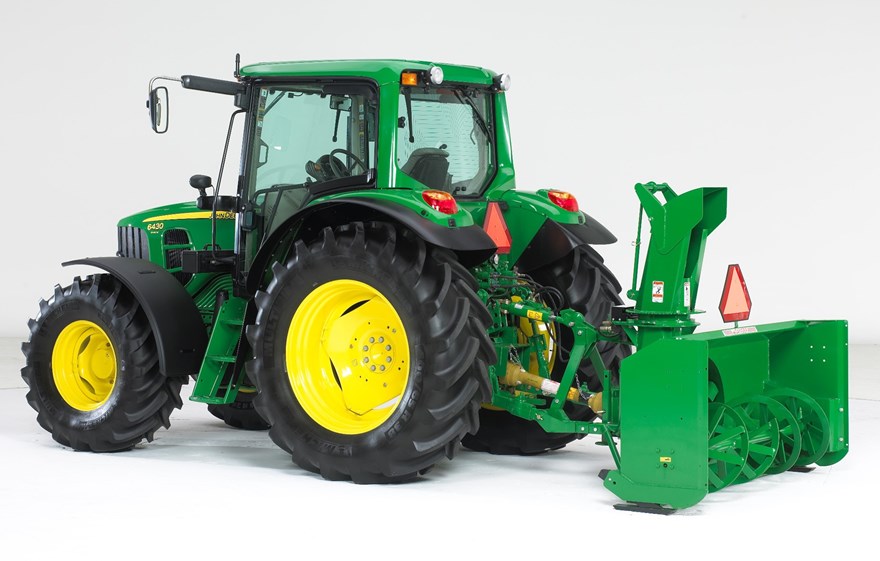

The Frontier™ SB1388 is a heavy-duty commercial-grade 3-point snowblower. Big snow banks are no match for it and it is perfect for rural customers who need to clear long driveways and large areas.

88-Inch Width
Adjustable Skid Shoes
Hydraulic Chute Rotation
Gearbox Reducer Kit

Send to a Friend

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Your Name*

Your Email*

Friends Email*

Payment Calculator

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Features
Specs

Features

Adjustable Skid Shoes Increase Durability

Close-up studio view of skid shoe on the underside of the SB13 Snowblower

The adjustable steel skid shoes on the SB13 Series increase the durability and life of the snowblowers.

Move Snow Faster and Blow it Farther With Impeller Blades

Moving snow faster and blowing it farther is simple with four impeller blades.

Hydraulic Chute Rotation Blows Snow Anywhere

Close-up of a green snowblower housing showing a rotating chute base with gear teeth, hydraulic hoses, and safety decals

All SB13 Series Snowblowers are equipped with hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go.

Warranty period

Gear Box Warranty Period	1 year
Machine Warranty Period	1 year

Auger

Auger Diameter	55.9 cm
Auger Diameter	22 in.
Auger Speed	170 rpm
Auger Overload Protection	Single, dual is optional

Weights

Operating Weight	1552 lb.
Operating Weight	704 kg
Shipping Weight	724.4 kg
Shipping Weight	1597 lb.

Hitch

Quick Coupler	Yes
Hitch Compatibility	Category 2

Chute

Chute Rotation Degrees	270 degree (angle)
Chute Type	Two-part or three-part
Chute Diameter	32.4 cm
Chute Diameter	12.75 in.
Standard Chute Deflector Adjustment	Manual
Chute Rotation Type	Hydraulic
Optional Chute Deflector Adjustment	Hydraulic cylinder

Dimensions

Height	40 in.
Transport Width	224.8 cm
Height	101.6 cm
Transport Width	88.5 in.
Working Width	88 in.
Working Width	223.5 cm
Length	154.9 cm
Length	61 in.

Setup Time

Set-Up Time Labor Hours

1.5 hours

Tractor Compatibility

PTO Overload Protection	Shearbolt
PTO Speed	Standard: 540 rpm; Optional: 1000 rpm rpm
Minimum Power	33.6 kW
Minimum Power	45 hp
Maximum Power	70.8 kW
Maximum Power	95 hp

Housing

Side Panel Thickness	1.59 cm
Side Panel Thickness	0.63 in.
Impeller Housing Thickness	0.64 cm
Impeller Housing Thickness	0.25 in.

Skid Shoes

Skid Shoe Type	Steel, adjustable
Skid Shoe Material	Steel

Chain

Chain Roller	80
Chain Idler Adjustment	Automatic

Impeller

Optional Secondary Auger Diameter	14 in.
Optional Secondary Auger Diameter	35.6 cm
Impeller Width	12 in.
Impeller Blades	Four
Impeller Width	30.48 cm
Impeller Diameter	28 in.
Impeller Diameter	71.2 cm
Impeller Speed	540 rpm

Cutting Edge

Cutting Edge Type

Bolt on reversible

Drum

Drum Rotation

Optional
