Features
Quik-Change Capability

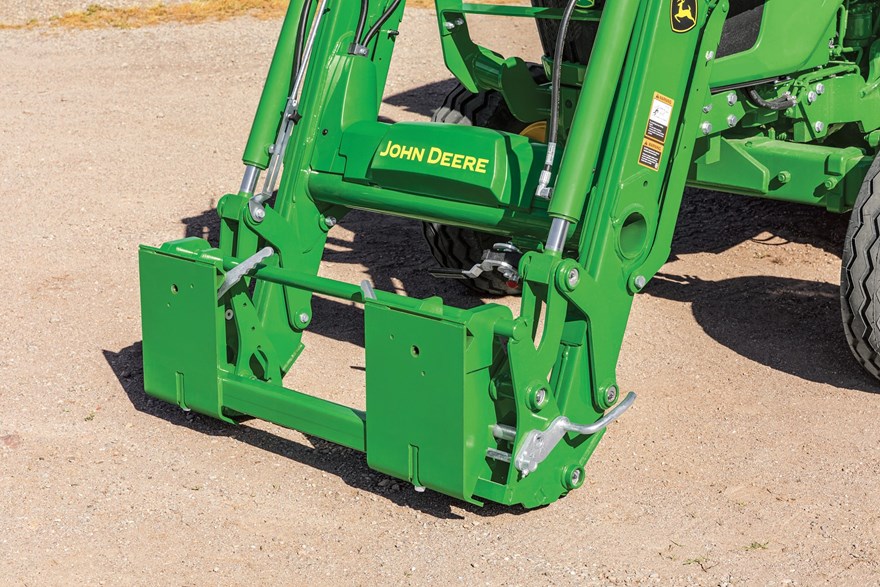

Hook up the skid steer carrier adapter by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place, converting your John Deere Quik-Change to skid steer style carrier. The carrier can also be left hooked to the attachment when using another attachment with a different style carrier.
Use Skid Steer Attachments With Carrier Adapter
The skid steer carrier adapter allows for the use of skid steer attachments on a Quik-Change 600 Series and 700 Series Loader to increase tractor and attachment compatibility.
Enhanced Load Capacity
The adapter supports a significant capacity of 5000 lb. (2268 kg), allowing it to handle a wide range of heavy-duty tasks. This substantial capacity is ideal for demanding agricultural and construction operations requiring robust equipment.
Dimensions
| Overall Height | 58.7 cm |
| Overall Height | 23.1 in. |
| Overall Width | 125.5 cm |
| Overall Width | 49.4 in. |
| Increased Loader Length | 12.7 cm |
| Increased Loader Length | 5 in. |
Weight
| Operational Weight | 86.2 kg |
| Operational Weight | 190 lb. |
Warranty
| Warranty Time Period | 1 year |
Attachment Carrier
| Current Series Style | John Deere 600 Style Loader |
Tractor Compatibility
| Maximum Tractor Power | 108.2 kW |
| Maximum Tractor Power | 145 hp |
Carrier adapter capacity
| Carrier Adapter Capacity | 2268 kg |
| Carrier Adapter Capacity | 5000 lb. |
