Features
Cage Roller Adjustment for Firming Action Is Easy

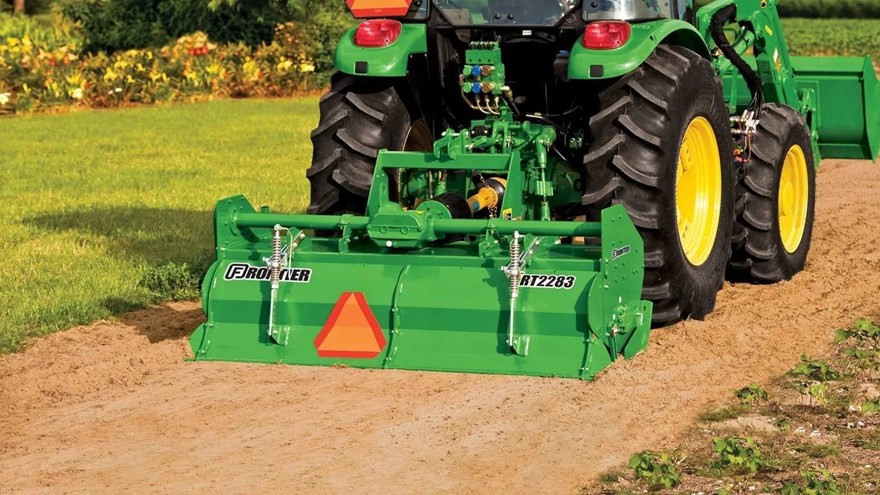

The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion. The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.
Heavy-Duty Wear Shields for Added Gearcase Protection
The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.
Rotor Is Helical-Shaped for Higher Efficiency
The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Safety And Markings
| Markings | Standard |
| Rear Door Support | Chain |
| Parking Stand | Standard |
Tractor Compatibility
| PTO Speed | 540 rpm |
| Maximum PTO Power | 90 hp |
| Maximum PTO Power | 67 kW |
| Minimum PTO Power | 37 kW |
| Minimum PTO Power | 50 hp |
Depth Control
| Maximum Working Depth | 27 cm |
| Maximum Working Depth | 10.6 in. |
| Depth Control Type | Skid shoes |
Dimensions
| Outside To Outside Width | 98 in. |
| Outside To Outside Width | 2489 mm |
| Working Width | 2362 mm |
| Working Width | 93 in. |
Weight
| Operating With Skid Shoes | 1807 lb. |
| Operating With Skid Shoes | 819.6 kg |
Gearbox
Hitch
| Quick Coupler (Category 2) | Yes |
| 3-Point Compatible | Category 2 |
Blade
Rotor
| Blades (Quantity) | 6 |
| Flanges (Quantity) | 9 |
Drive System
Warranty
PTO Shaft
Duty
