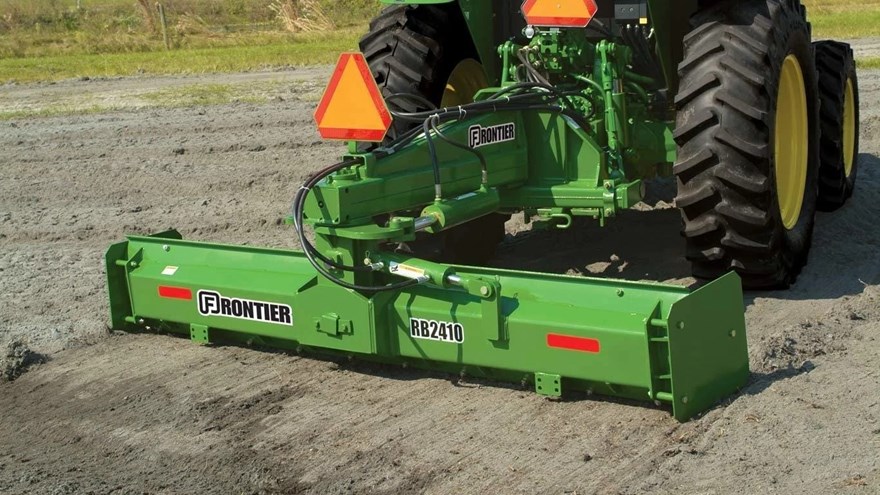

RB2410

The Frontier™ RB2410 - 10 Ft. Heavy Plus Rear Blade offers superior durability and versatile performance, making it the ideal choice for efficient earthmoving, roadside clearing, and snow removal for both residential and commercial applications.

Width: 120 in. (304.8 cm)
Duty: Heavy Plus
Reversible Cutting Edge
Optional End Plates

Send to a Friend

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Your Name*

Your Email*

Friends Email*

Payment Calculator

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Features
Specs

Features

Quickly and Efficiently Attach to Hitch

Front view of an RB2308 rear blade grading grassy dirt on the back of a 5100R tractor

The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

Manually Adjustable Angle, Tilt, and Offset

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Frame's Tubular Steel Is Crafted for Tough Jobs

3038E Tractor with rear blade and front loader on dirt drive

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

Weight

Shipping Per Unit	1653 lb.
Shipping Per Unit	749.8 kg
Machine	703.1 kg
Machine	1550 lb.

Parking Stand

Standard With Machine

Standard

Dimensions

Moldboard Height	48.3 cm
Moldboard Height	19 in.
Moldboard Length	120 in.
Moldboard Length	304.8 cm
Width In Working Position	10 ft
Width In Working Position	3 m
Moldboard Thickness	0.3125 in.
Moldboard Thickness	0.8 cm

Tractor Requirements

Hydraulic Offset Kit (Hoses And Fittings Included)	Standard, manual offset and tilt require one hydraulic remote
PTO	2WD: 119.3; 4WD: 108.1 kW
PTO	2WD: 160; 4WD: 145 hp

Angle, Tilt, Offset, Pivot

Tilt Positions/Degrees	Two positions up and down, up to 15 degree (angle)
Pivot Angle Degrees	360 degree (angle)
Angle Reverse, Number Of Positions	Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)
Offset Position Left or Right	0-36 in.
Offset Position Left or Right	0-91.44 cm
Angle Forward, Number Of Positions	Four positions right, up to 26 degree (angle); Five positions left, up to 38 degree (angle)

Hitch

Type	Category 2 and Category 3
Quick Hitch Compatibility	ASAE Category 2 and 3 quick coupler

Duty

Type	Heavy plus

Reversible Cutting Edge

Height	15.2 cm
Height	6 in.
Thickness	0.5 in.
Thickness	1.3 cm

Warranty

Time Period

1 year
