Features
Quickly and Efficiently Attach to Hitch
The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.
Manually Adjustable Angle, Tilt, and Offset
The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.
Crafted for Tough Jobs

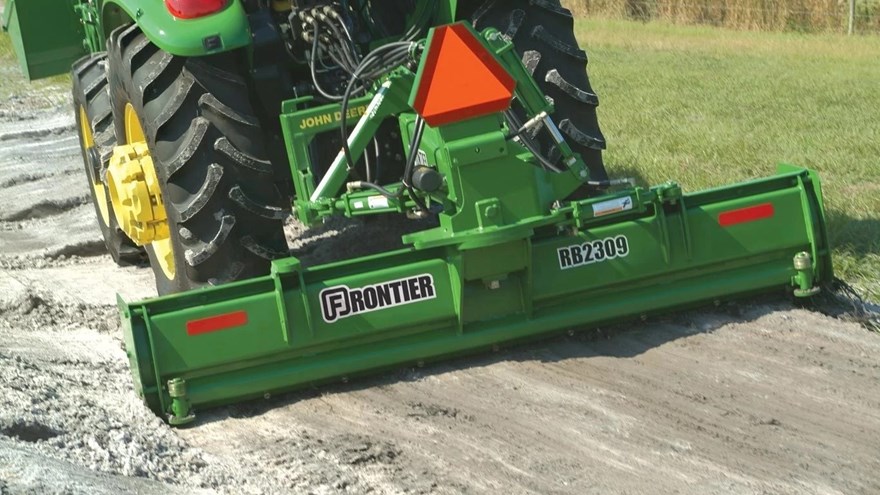

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading. Its full-radius moldboard more than handles landscaping needs.
Weight
| Shipping Per Unit | 1117 lb. |
| Shipping Per Unit | 506.7 kg |
| Machine | 480.8 kg |
| Machine | 1060 lb. |
Parking Stand
| Standard With Machine | Standard |
Dimensions
| Moldboard Height | 213.4 cm |
| Moldboard Height | 19 in. |
| Moldboard Length | 84 in. |
| Moldboard Length | 213.4 cm |
| Width In Working Position | 7 ft |
| Width In Working Position | 2.1 m |
| Moldboard Thickness | 0.3125 in. |
| Moldboard Thickness | 0.8 cm |
Tractor Requirements
| Hydraulic Offset Kit (Hoses And Fittings Included) | Up to 3 hydraulic remotes required |
| PTO | 2WD: 89.5; 4WD: 82 kW |
| PTO | 2WD: 120; 4WD: 110 hp |
Angle, Tilt, Offset, Pivot
| Tilt Positions/Degrees | Three positions, up and down, up to 23 degree (angle) |
| Pivot Angle Degrees | 360 degree (angle) |
| Angle Reverse, Number Of Positions | Three positions each side, up to 45 degree (angle) |
| Offset Position Left or Right | 9-18 in. |
| Offset Position Left or Right | 22.86-45.72 cm |
| Angle Forward, Number Of Positions | Three positions each side, up to 45 degree (angle) |
Hitch
| Type | Category 2 |
| Quick Hitch Compatibility | ASAE Category 2 quick coupler |
Duty
Reversible Cutting Edge
| Height | 15.2 cm |
| Height | 6 in. |
| Thickness | 0.5 in. |
| Thickness | 1.3 cm |
Warranty
