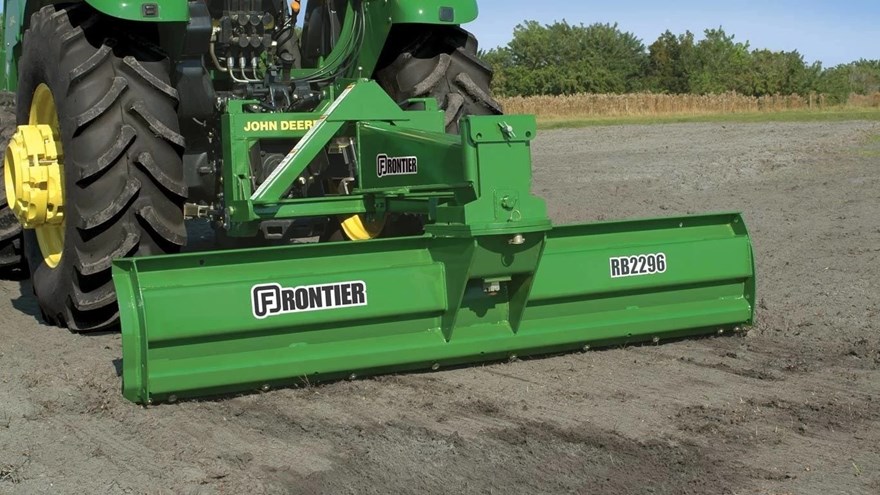

Features
Longer Wear Life With Reversible Cutting Edge
All Frontier™ RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.
Manually Adjustable Angle, Tilt, and Offset
The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.
Frame's Tubular Steel Is Crafted for Tough Jobs
The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.
Weight
| Shipping Per Unit | 829 lb. |
| Shipping Per Unit | 376 kg |
| Machine | 350.2 kg |
| Machine | 772 lb. |
Parking Stand
Dimensions
| Moldboard Height | 48.3 cm |
| Moldboard Height | 19 in. |
| Moldboard Length | 96 in. |
| Moldboard Length | 243.8 cm |
| Width In Working Position | 8 ft |
| Width In Working Position | 2.4 m |
| Moldboard Thickness | 0.25 in. |
| Moldboard Thickness | 0.6 cm |
Tractor Requirements
| Hydraulic Offset Kit (Hoses And Fittings Included) | Optional hydraulic offset - up to one hydraulic remotes required |
| PTO | 2WD: 59.7; 4WD: 52.2 kW |
| PTO | 2WD: 80; 4WD: 70 hp |
Angle, Tilt, Offset, Pivot
| Tilt Positions/Degrees | Three positions, up or down up to 23 degree (angle) |
| Pivot Angle Degrees | 360 degree (angle) |
| Angle Reverse, Number Of Positions | Three positions, on each side up to 45 degree (angle) |
| Offset Position Left or Right | 9, 18 in. |
| Offset Position Left or Right | 22.9, 45.7 cm |
| Angle Forward, Number Of Positions | Three positions, on each side up to 45 degree (angle) |
Hitch
| Type | Category 2 |
| Quick Hitch Compatibility | ASAE Category 2 Quick coupler compatible |
Duty
Reversible Cutting Edge
| Height | 15.2 cm |
| Height | 6 in. |
| Thickness | 0.5 in. |
| Thickness | 1.3 cm |
