Features
Adjustable End Plate

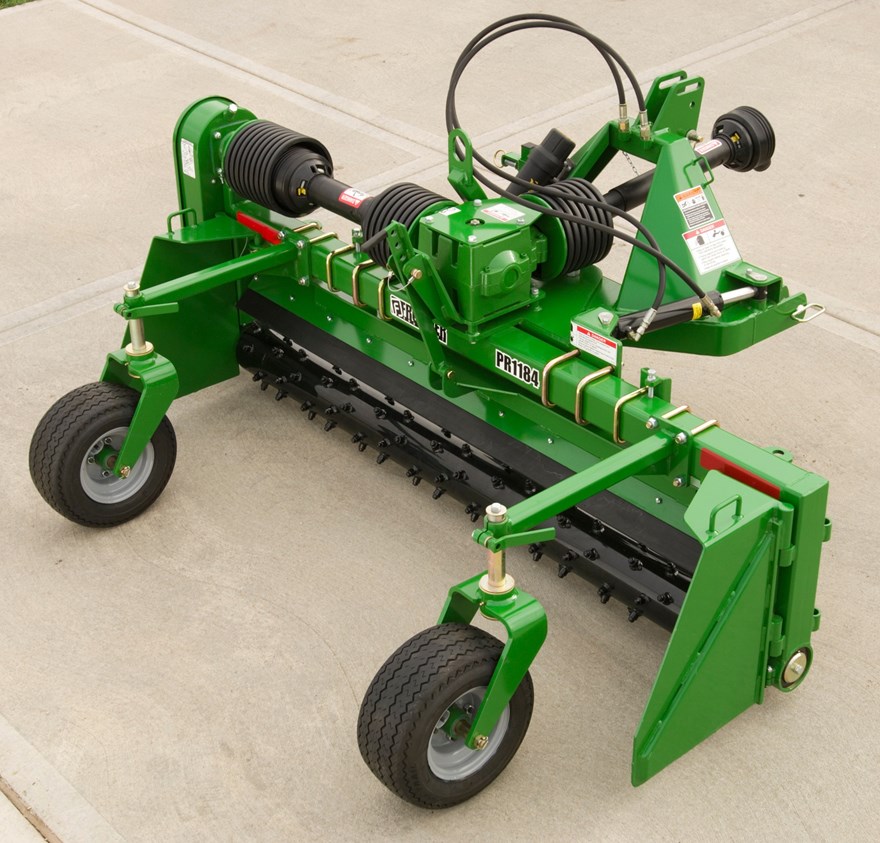

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.
Angle Adjustment
From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.
Carbide Teeth Retain Moisture With Fracture Pattern
By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.
Hitch
| Quick Coupler (Cat. 2) | Yes |
| Compatibility | Category 1, Category 2 |
Dimensions
| Transport Width | 236.2 cm |
| Transport Width | 93 in. |
| Working Width | 213.4 cm |
| Working Width | 84 in. |
| Machine Length | 177.8 cm |
| Machine Length | 70 in. |
| Working Width At Max Angle | 205.7 cm |
| Working Width At Max Angle | 81 in. |
| Machine Height | 44 in. |
| Machine Height | 118.8 cm |
Tractor Compatibility
| PTO Horsepower | 42-80 hp |
| PTO Horsepower | 31.3-59.7 kW |
| Hydraulic Requirement | 1500 rpm |
| PTO Speed | 540 rpm |
Setup Time
Depth Control
| Type | Dual independent adjustable gauge wheels |
Parking Stands
Weight
| Shipping | 1700 lb. |
| Shipping | 771.1 kg |
| Operating | 1260 lb. |
| Operating | 571.5 kg |
Warranty
Working angles
| Degrees Left or Right | 0-15 degree (angle) |
Rotor
| Quantity Of Carbide Teeth Per Rotor | 132 |
| Speed | 270 rpm |
| Direction Of Travel | Against DOT |
