John Deere Products / Tractors / Tractor Attachments and Implements / PG11

PG11

The PG11 Pallet Fork Grapple offers increased uptime with its easy attachability and modular design. It combines a pallet fork with a grapple, providing flexibility for handling various materials. The serrated grapple tine secures items effectively without piercing.

Requires Third Hydraulic Loader Function
Click Pin and Pivot Pin Replacement for Ease of Assembling and Disassembling
Tooth Pattern Designed for Gripping, Not Piercing
Independent Use of Pallet Fork

Send to a Friend

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Your Name*

Your Email*

Friends Email*

Payment Calculator

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Features
Specs

Features

Secure Items With a Serrated Grapple Tine

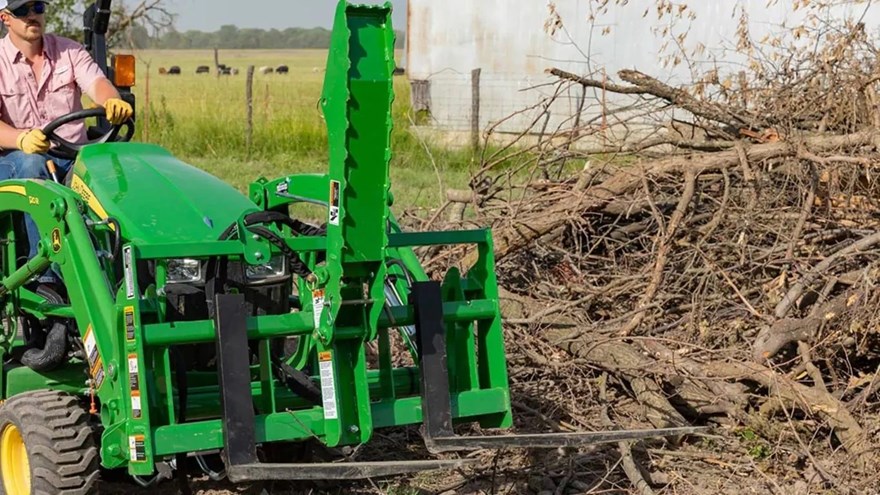

Tractor front-loader attachment with pallet forks and a vertical serrated grapple arm positioned on a gravel surface.

The serrated grapple tine, designed for gripping and not piercing, helps secure items when operating.

Easily Use Pallet Fork Independent of the Grapple

Green compact tractor carrying two large metal bells on a front loader pallet.

There are two options for using the pallet fork independent of the grapple. The first option is to lock the grapple tine in the fully open position using a lock pin. The second option is to remove the grapple tine and hydraulic cylinder assembly while leaving the grapple base on the pallet fork.

Increased Uptime With Ease of Attachability

Close-up of a a safety locking pin with cable being inserted into a green tractor or loader attachment bracket, showing warning labels, hydraulic linkage, and metal mounting points.

The PG11 Pallet Fork Grapple features a modular design allowing for quick attachment to existing pallet forks. Its assembly uses lightweight components under 40 lb. (18.1 kg) each. The modular system provides great flexibility, accommodating various material handling.

Dimensions

Overall Length	98.8 cm
Overall Length	38.9 in.
Overall Width	6.5 in.
Overall Width	16.5 cm

Additional Information

Date Collected

2020-08-18

Warranty

Time Period

1 year

Compatibility

Pallet For Models

AP10F, AP11F

Weight

Operational	136.7 lb.
Operational	62 kg
