Features
Hydraulic or Two-Speed Apron Drives
The hydraulic apron drive, optional on all Frontier™ heavy-duty models, provides versatile load movement with variable speeds. The two-speed apron drive includes low-speed, high-speed, and cleanout modes.
Better Cutting Coverage and Versatile Spreading Action

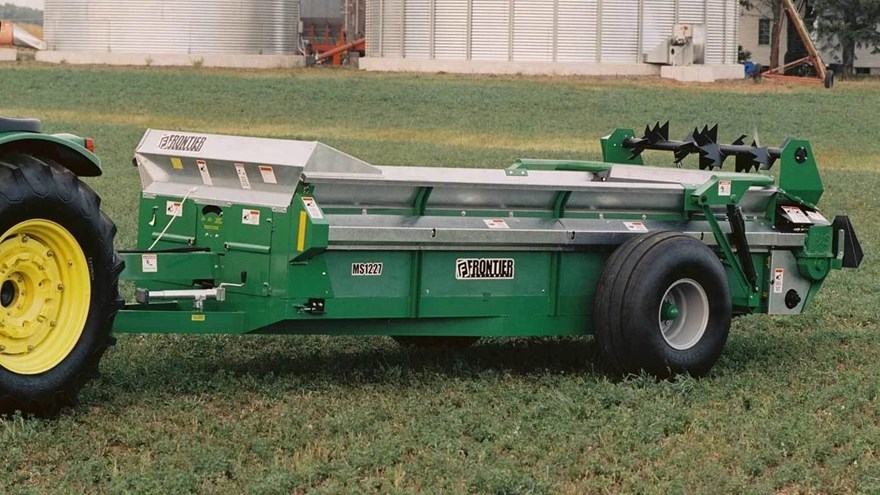

With one of the largest beaters on the market, 29 in. (73.7 cm) in diameter, the MS12 Series Spreaders cover more area from top to bottom to handle big loads with ease. Faster tip-speed provides a wide uniform spread. Paddle assemblies match the material: blunt for wide spread patterns and sharp, ripper-type paddles for more aggressive action.
Built Rugged for Years of Dependable Service
Spreader boxes are constructed of corrosion-resistant, galvanized steel to ensure long life. The entire spreader box is poly-bonded to marine-type plywood for easy cleaning and minimal freeze up, reducing the amount of torque needed to move heavier loads.
Dimensions
| Inside Depth | 28.375 in. |
| Inside Length | 3.7 m |
| Overall Loading Height - Top Of Flare | 51.5 in. |
| Overall Height With Hydraulic Endgate To Top Beater | 140 cm |
| Inside Width | 152 cm |
| Horizontal Beater Configuration | 5.7 m |
| Top Of Flare Width | 173 cm |
| Overall Width With Standard Tires | 92.5 in. |
| Overall Width With Standard Tires | 235 cm |
| Inside Depth | 72 cm |
| Inside Length | 145.2 in. |
| Overall Loading Height - Top Of Flare | 131 cm |
| Inside Width | 60 in. |
| Horizontal Beater Configuration | 18.6 ft |
| Top Of Flare Width | 68 in. |
| Overall Height With Hydraulic Endgate To Top Beater | 55 in. |
Beaters
| Lower | Yes |
| Upper | Optional |
| Lower | 74 cm |
| Lower | 29 in. |
Weight
| Implement With Base Tire | 2890 lb. |
| Implement With Base Tire | 1311 kg |
| Towing Unit Minimum Weight | 7741 lb. |
| Towing Unit Minimum Weight | 3511 kg |
Capacity
| Struck Level | 4.049 m³ |
| Struck Level | 143 cu ft |
| Heaped | 8.281 m³ |
| Heaped | 235 bu |
Wheels And Tires
| Spindle Size | 5 cm |
| Spindle Size | 2 in. |
| Hub Style | Greasable |
| Tire Size | Standard: 295 x 22.5 Recap; Optional: 16.5 x 16.1 Floation |
| Axle | Single |
Lighting, Marking, And Safety
| Transport Safety Lights | Standard |
| Markings | SMV |
| Safety Tow Chain | Standard |
| Jack | Standard |
Setup Time
Drive System
| Ground Drive | No |
| Hydraulic | Optional |
| Beater | PTO |
| Chain Type | T-rod |
| PTO Drive | Standard |
Construction
| Box | Fiberglass Reinforced Plywood |
| Floor | Bonded poly |
PTO drive
Paddles
| Horizontal | 14 |
| Replaceable | Yes |
Rear pan
Warranty
End gate
