Features
Heavy-Duty Paddle Beater Assemblies

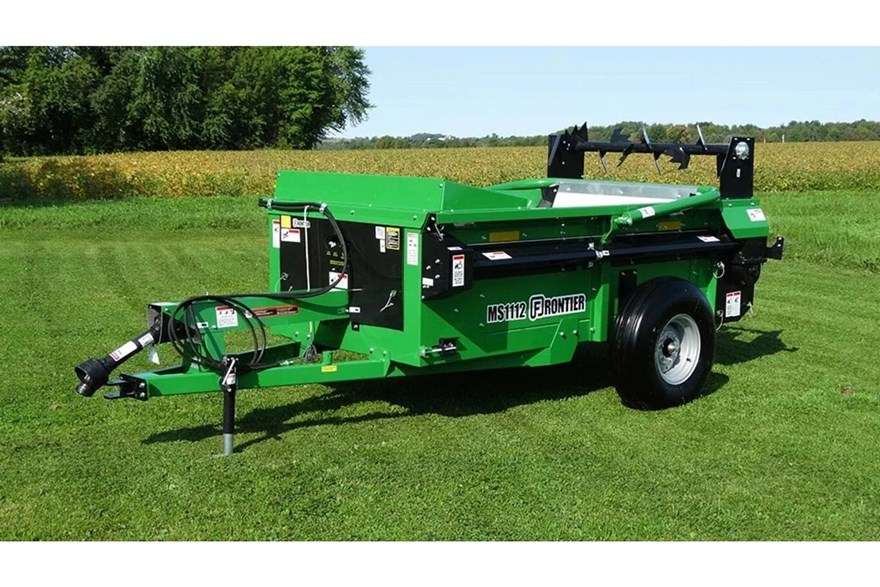

The heavy-duty paddle beater assemblies on the MS11 Series Small Manure Spreaders ensure aggressive shredding action, while the large-diameter beaters deliver greater tip speed for wide, even, and chunk-free spread patterns.
Poly-Bonded Floor
All models come with a poly-bonded floor to reduce apron drag.
Years of Trouble-Free Service
The manure spreaders sides are constructed of durable powder-coated steel.
Paddles
Dimensions
| Inside Depth | 25.75 in. |
| Inside Length | 3.38 m |
| Overall Loading Height - Top Of Flare | 45.5 in. |
| Overall Height With Hydraulic Endgate To Top Beater | 124 cm |
| Inside Width | 122 cm |
| Horizontal Beater Configuration | 5.38 m |
| Top Of Flare Width | 161 cm |
| Overall Width With Standard Tires | 83.5 in. |
| Overall Width With Standard Tires | 212 cm |
| Inside Depth | 65 cm |
| Inside Length | 133.2 in. |
| Overall Loading Height - Top Of Flare | 116 cm |
| Inside Width | 48 in. |
| Horizontal Beater Configuration | 17.8 ft |
| Top Of Flare Width | 63.5 in. |
| Overall Height With Hydraulic Endgate To Top Beater | 49 in. |
Beaters
| Lower | Yes |
| Lower | 27 in. |
| Lower | 68 cm |
Capacity
| Struck Level | 2.973 m³ |
| Struck Level | 105 cu ft |
| Heaped | 175 bu |
| Heaped | 6.167 m³ |
Weight
| Implement With Base Tire | 921 kg |
| Implement With Base Tire | 2030 lb. |
| Towing Unit Minimum Weight | 5672 lb. |
| Towing Unit Minimum Weight | 2573 kg |
Rear pan
Drive System
| Chain Type | T-rod |
| PTO Drive | Yes |
Wheels And Tires
| Spindle Size | 5 cm |
| Spindle Size | 2 in. |
| Hub Style | Greaseable |
| Tire Size | 8.25x20 |
| Axle | Single |
Setup Time
Lighting, Marking, And Safety
| Markings | SMV |
| Safety Tow Chain | Standard |
| Jack | Standard |
Warranty
Construction
| Box | Corrosion resistant galvanized steel |
| Floor | Bonded poly |
PTO drive
End gate
