Features
Heavy-Duty Paddle Beater Assemblies

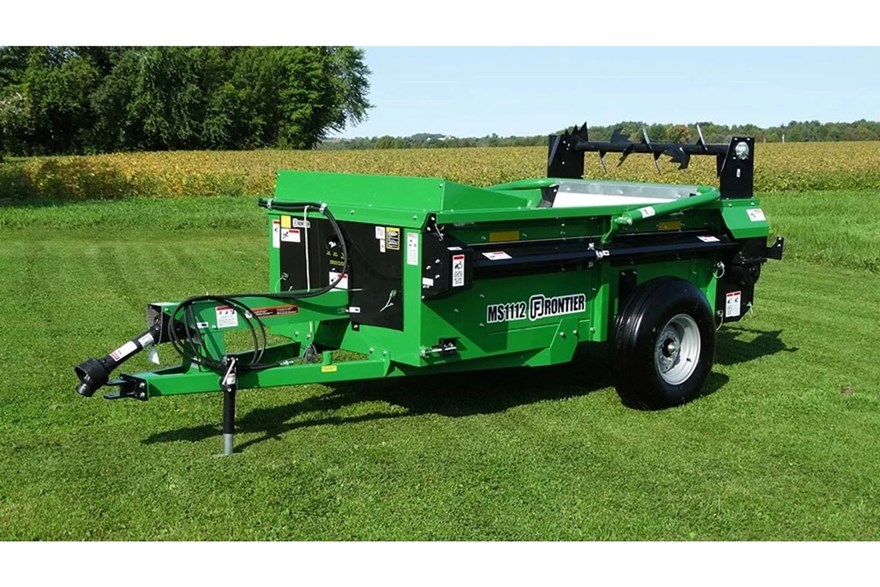

The heavy-duty paddle beater assemblies on the MS11 Series Small Manure Spreaders ensure aggressive shredding action, while the large-diameter beaters deliver greater tip speed for wide, even, and chunk-free spread patterns.
Poly-Bonded Floor
All models come with a poly-bonded floor to reduce apron drag.
Years of Trouble-Free Service
The manure spreaders sides are constructed of durable powder-coated steel.
Paddles
| Horizontal | 10 |
| Replaceable | No |
Dimensions
| Inside Depth | 22 in. |
| Inside Length | 3.2 m |
| Overall Loading Height - Top Of Flare | 43.5 in. |
| Inside Width | 122 cm |
| Horizontal Beater Configuration | 4.66 m |
| Top Of Flare Width | 137 cm |
| Overall Width With Standard Tires | 80 in. |
| Overall Width With Standard Tires | 203 cm |
| Inside Depth | 56 cm |
| Inside Length | 127.2 in. |
| Overall Loading Height - Top Of Flare | 110 cm |
| Inside Width | 48 in. |
| Horizontal Beater Configuration | 15.3 ft |
| Top Of Flare Width | 54 in. |
Beaters
| Lower | Yes |
| Lower | 22 in. |
| Lower | 56 cm |
Capacity
| Struck Level | 2.124 m³ |
| Struck Level | 75 cu ft |
| Heaped | 125 bu |
| Heaped | 4.405 m³ |
Weight
| Implement With Base Tire | 726 kg |
| Implement With Base Tire | 1600 lb. |
| Towing Unit Minimum Weight | 4547 lb. |
| Towing Unit Minimum Weight | 2062 kg |
Rear pan
Drive System
| Chain Type | 67XH |
| PTO Drive | Yes |
Wheels And Tires
| Spindle Size | 5 cm |
| Spindle Size | 2 in. |
| Hub Style | Greaseable |
| Tire Size | 10x15 |
| Axle | Single |
Setup Time
Warranty
Lighting, Marking, And Safety
| Safety Tow Chain | Standard |
| Jack | Standard |
Construction
| Box | Corrosion resistant galvanized steel |
| Floor | Bonded poly |
PTO drive
