Features
Full Upper and Lower Tines
With teeth on both the upper and lower tines, the MG20F is crafted to securely grab, transport, and maintain a hold on materials, ensuring efficacy in various tasks from brush clearing to moving large loads.
Lower Cost with No Third Hydraulic Function Required

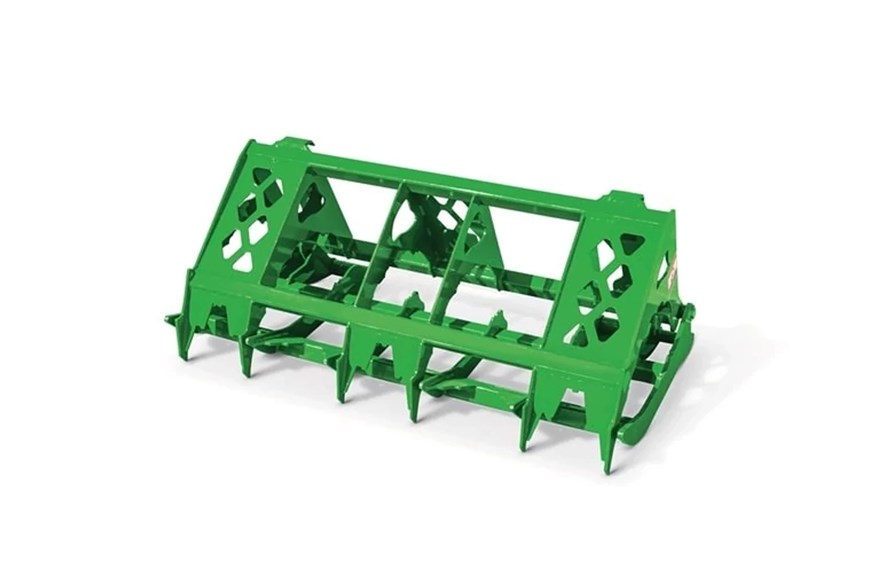

The MG20F Mechanical Grapple eliminates the need for a third hydraulic function, making it a cost-effective choice. It is secured on the loader frame while the bucket cylinders operate the upper section, providing efficient grappling action.
Quick-Attach Loader Carrier Compatibility
The MG20F is compatible with NSL (non self-leveling) 120R, 220R, and 300E Loaders using a quick-attach system. This design adds convenience and flexibility to attach and detach the grapple easily.
Dimensions
| Height (Open) | 32.66 in. |
| Height (Open) | 82.95 cm |
| Width | 136.85 cm |
| Width | 53.88 in. |
| Height (Closed) | 23.8 in. |
| Height (Closed) | 60.45 cm |
Weight
| Shipping | 316 lb. |
| Shipping | 143.33 kg |
| Operational | 281 lb. |
| Operational | 127.46 kg |
Capacity
| Maximum Clamping Diameter | 68.58 cm |
| Maximum Clamping Diameter | 27 in. |
| Lift Capacity | 544.31 kg |
| Lift Capacity | 1200 lb. |
| Minimum Clamping Diameter | 19.05 cm |
| Minimum Clamping Diameter | 7.5 in. |
Loader Interface
| Compatibility | John Deere Quick Attach- See Compatibility Chart |
