Features
Hopper Lid Easily Stays Open
Gas springs keep the lid open for easy access and screen cleaning.

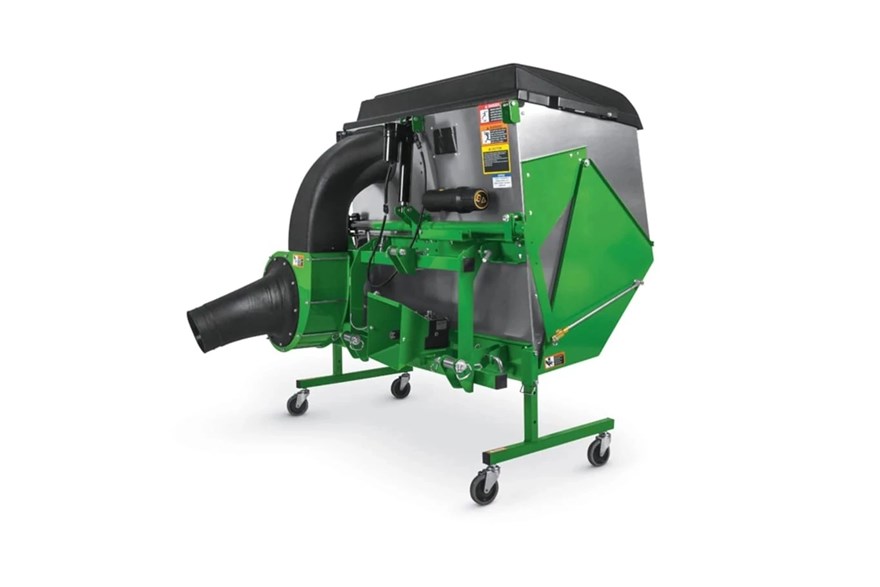

Hopper Collecting System With Dump-From-Seat
With the MC2120 Material Collection System, the material is transferred from the high-performance steel blower into the hopper with a total capacity of 20 bu (705 L). The hopper, with effortless dump-from-seat (DFS), is simply executed with the press of a button.
Audible Fill Indicator Alerts the Operator
The optional fill sensor (wireless) alerts the operator when the hopper is getting full. When the indicator begins to beep, the operator should turn off the mower to prevent plugging and overfilling. In addition, a plexiglass sight window is standard on the MC2120.
Blower system
| Drive Type | Gearbox |
| Materials | Fan: Cast urethane with machine steel hub; Fan housing: Steel, 11 gauge, 3.03 mm, 0.12 in. |
| Fan Diameter | 15 in. |
| Fan Diameter | 381 mm |
| Number Of Blades | 5 |
| Fan Speed | 3402 rpm |
Warranty
Hose
| Material | Clear polyurethane with black helix |
| Diameter | 8 in. |
| Diameter | 203 mm |
Requirements and compatibility
| PTO | 540 |
| 3-Point Hitch | Category 1 |
| Electrical | Connection: 12 V, 30 amp |
| Mower Deck | Mid-mount side-discharge deck |
| Counterweight | Implement code: 31 |
Hopper
| Capacity | 20 bu |
| Capacity | 705 L |
| Weight | Empty: 194.6 kg, 429 lb; Full (varies based on material): 312.5 kg, 689 lb |
