Features
High-Performance PTO-Driven Blower
The PTO-driven blower is engineered using a 15-in. (381-mm) urethane impeller spinning at 3402 rpm to generate strong suction and fully fill the bags. Its direct mounting on the collection system preserves mower balance, ensuring a consistent, level cut.
Two Integrated Stands Make Storage Fast and Convenient
To store the Material Collection System, two integrated steel storage stands make attaching and detaching quick and easy. An optional caster wheel kit for the bottom of the stands provides a solution to further simplify maneuvering during attachment, detachment, and storage.

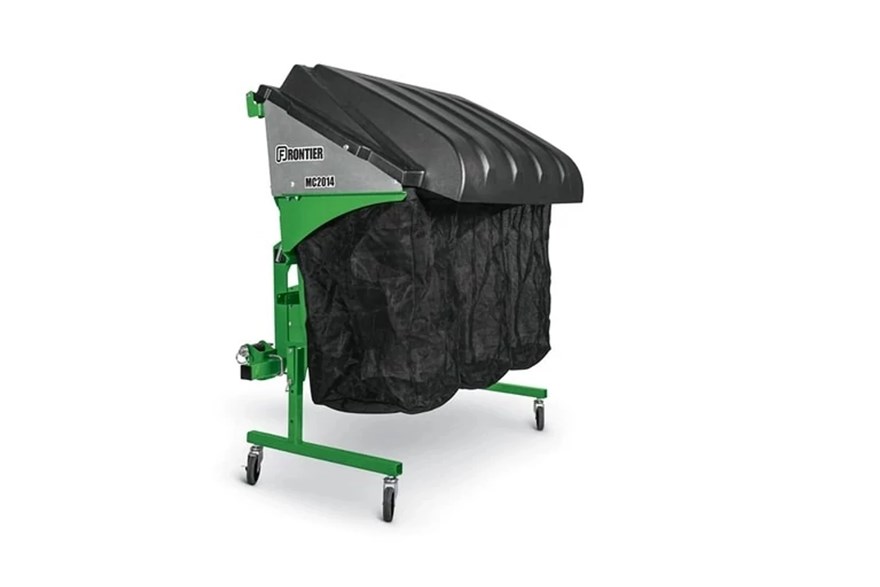

Material Collecting System with Three Individual Bags
Material is transferred from the high-performance steel blower into the three bags for a total capacity of 14 bu (493 L). The three-bag system makes emptying and reinstallation of the bags easy. The weaving is designed to not swell in the center to ease emptying.
Blower system
| Drive Type | Gearbox |
| Materials | Fan: Cast urethane with machine steel hub; Fan housing: Steel, 11 gauge, 3.03 mm, 0.12 in. |
| Fan Diameter | 15 in. |
| Fan Diameter | 381 mm |
| Number Of Blades | 5 |
| Fan Speed | 3402 rpm |
Warranty
Hose
| Material | Clear polyurethane with black helix |
| Diameter | 8 in. |
| Diameter | 203 mm |
Requirements and compatibility
| PTO | 540 |
| 3-Point Hitch | Category 1 |
| Mower Deck | Mid-mount side-discharge deck |
| Counterweight | Implement code: 19a |
Hopper
| Capacity | 14 bu |
| Capacity | 493 L |
| Weight | Empty: 117.5 kg, 259 lb; Full (varies based on material): 200 kg, 441 lb |
