Features
Easy to Maneuver

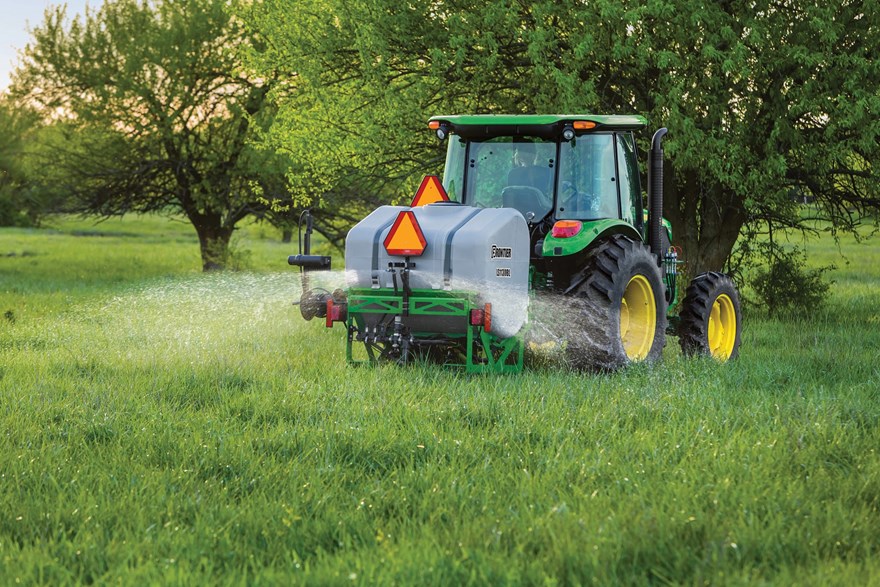

The LS1130BL boomless model uses 2 nozzles located directly behind the tank that provide a 30-ft (9.1 m) maximum spray width. It’s perfect for working in areas with trees or other obstacles to work around.
Easy loading and unloading
Tube frame design includes a parking stand with integrated pallet fork tine pockets for easy loading, unloading, and positioning for storage
Teardrop-Shaped Tank Allows for Quick Clean-up
The shape of the tank allows the liquid inside the tank to completely drain out, making it faster to switch from one chemical to the next, or prepare for storage.
Speed
| Application Speed | 4-10 mph |
| Application Speed | 6.4-16.1 km/h |
| Maximum Transport Speed | 25 mph |
| Maximum Transport Speed | 40 km/h |
Tractor Compatibility
| Horsepower Range | 50 hp |
| Horsepower Range | 37.3 kW |
Pump
| Hydraulic | FMC-75-HYD-204 (pump 75 / motor 204) |
| Flow Rate | Maximium with PTO pump: 79.5 L/min, 21 gpm; With hydraulic pump: 102.2 L/min, 27 gpm |
Dimensions
| Working Width | 30 ft |
| Working Width | 9.14 m |
| Transport Width | 6.9 ft |
| Transport Width | 2.1 m |
Weight
| Dry Weight | 635, 650 lb. |
| Dry Weight | 288, 295 kg |
| Loaded with Options | 2721 (Option one); 3154 (Option two) lb. |
| Loaded with Options | 1234 (Option one); 1431 (Option two) kg |
Tank
| Sprayer Tank Capacity | 250 (Tank one); 300 (Tank two) gal. |
| Sprayer Tank Capacity | 946 (Tank one); 1136 (Tank two) L |
Boom
Hitch
| Type | Category 2 and 3, 3-point hitch with quick-hitch |
Frame
Application
| Section Valves | SV.1999A.1V.WP |
| Nozzle Tip | Hypro XT-Boom Xtender XT020 |
| Nozzle Spacing | Off center: 50.8cm, 20 in. |
Safety features
| Transport Lights | Installed |
| Stand | Fully integrated with pallet fork insert |
Additional Information
