Features
Multiple Positions for Desired Raking Profile

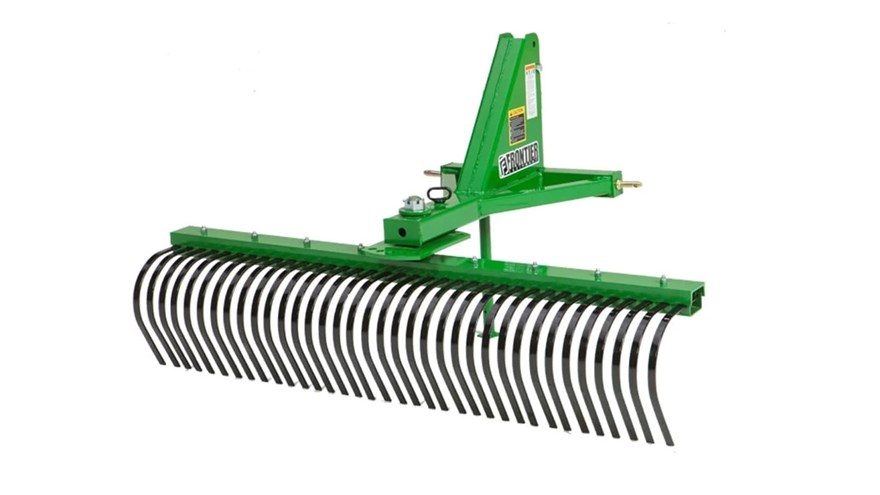

Standard-duty landscaping rake models feature high-strength, formed tine beams constructed with a slotted, bolt-in mounting system. The spring steel tines are spaced at 1-in. (2.5-cm) intervals for exceptional performance in pick-up, grooming, and material distribution. This mounting ensures positive spacing and alignment over each tine.
Tubular Steel Frame and Angled Tine Beam
A strong, tubular-steel frame supports an angled tine beam for superior performance.
Compatible With Tractors Equipped With Category 1 3-Point and iMatch™ Hitches
These standard-duty landscape rakes are compatible with tractors equipped with Category 1 3-point hitches and are also iMatch™ hitch. iMatch compatibility ensures a quick and efficient hookup.
Hitch
| iMatch™ compatible (Cat.1) | Yes |
| Compatibility | Category 1 |
Duty
Weight
| Shipping | 629 lb. |
| Shipping | 278.5 kg |
| Operating | 272 lb. |
| Operating | 123.4 kg |
Dimensions
| Working Width | 182.9 cm |
| Working Width | 72 in. |
Tines
| Dimensions | 0.8x2.5 cm |
| Dimensions | 0.3125x1 in. |
| Quantity | 36 |
| Spacing | 2.54 cm |
| Spacing | 1 in. |
Tractor Compatibility
| PTO Horsepower | 50 hp |
| PTO Horsepower | 14.9-28.3 kW |
Pivot
| Degrees | 360 degree (angle) |
Warranty
Raking angle
| Positions | Forward: 5; Reverse: 5 |
| Degrees | 0, 15, 30 degree (angle) |
Shipping
Parking Stands
