Features
Strong 4x4 Steel Frame
A strong 4x4 steel frame supports an angled tine beam for superior performance.
Steel Tines and Waffle Plates

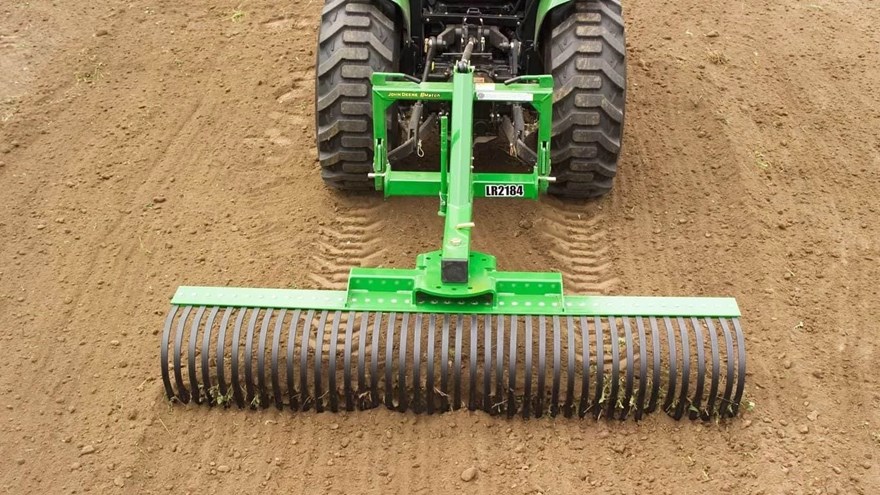

Heat-treated steel tines are mounted with bolts and held secure with a steel waffle plate on the Frontier™ LR21 Series Medium-Duty Landscape Rake. This mounting ensures positive spacing and alignment, while providing increased strength and durability. These waffle plates also make replacement fast and easy, saving time and money.
Quick Hookup With Category 1 and iMatch™ Hitches
The Frontier™ Medium-Duty Landscape Rake is 3-point hitch compatible with Category 1 and iMatch™ hitches, which ensures quick, efficient hookup.
Hitch
Duty
Weight
| Shipping | 418 lb. |
| Shipping | 189.6 kg |
| Operating | 332 lb. |
| Operating | 150.6 kg |
Dimensions
| Working Width | 243.8 cm |
| Working Width | 96 in. |
Tines
| Dimensions | 0.8x2.5 cm |
| Dimensions | 0.3125x1 in. |
| Quantity | 48 |
| Spacing | 2.54 cm |
| Spacing | 1 in. |
Tractor Compatibility
| PTO Horsepower | 27-55 hp |
| PTO Horsepower | 20.1-41 kW |
Pivot
| Degrees | 360 degree (angle) |
Warranty
Raking angle
| Positions | Forward: 5; Reverse: 3 |
| Degrees | 0, 15, 30 degree (angle) |
Parking Stands
