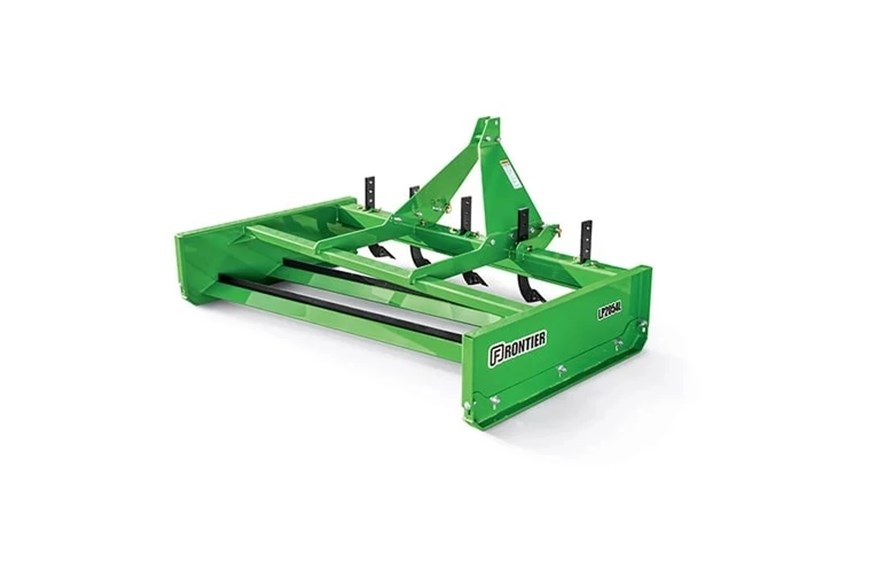

Features
Skid Shoes Adjust Up and Down
Skid shoes are adjustable up and down, extending the life of cutting edges and avoiding surface damage. They allow for creating a crown on roads to facilitate water runoff, with the ability to replace when worn out to prolong the land plane's lifespan.
Reversible Double-Beveled Cutting Edges
Equipped with reversible, double-beveled cutting edges, the land plane offers enhanced grading performance and extends the wear life of the blades, giving users an effective tool for leveling and grading tasks.
Scarifier Shanks for Ripping Hard Ground
The adjustable scarifier shanks are perfect for ripping up hard ground or for aggressive grading. They are capable of depth control adjustments to suit various types of groundwork, ensuring optimal performance.
Cutting Edge
| Cutting Edge Dimensions | 3/8 X 6 |
| Cutting Edge Material | High Carbon Heat Treated Blades |
| Replaceable | Yes |
| Reversible | Yes |
| Number Of Cutting Edges | 2 |
Dimensions
| Overall Height | 33 in. |
| Height To Hitch Pins | 35.6 cm |
| Overall Height | 83.8 cm |
| Height To Hitch Pins | 14 in. |
| Overall Length | 48 in. |
| Overall Length | 121.9 cm |
| Working Width | 137.2 cm |
| Working Width | 54 in. |
| Overall Width | 58 in. |
| Overall Width | 147.3 cm |
Scarifier
| Depth Range | 0, -1.5, -3 |
| Number Of Scarifiers | 4 |
| Scarifiers Shank | Heat Treated; 3 Positions |
Hitch
| iMatch™ Compatible (Cat. 1) | Yes |
| Hitch Type | Clevis with Pin |
| Hitch Category | Cat 1 Limited |
Construction
| Side Panel Thickness | 3/16 with Formed Edges |
| Adjustable Blade Depth | 0 to -2.5 via skid shoes |
| Duty | Light Duty |
| Adjustable Skid Shoe Thickness | 0.25 in., 0.64 cm |
Weight
| Shipping | 340 lb. |
| Shipping | 154.2 kg |
| Operating | 316 lb. |
| Operating | 143.3 kg |
Tractor Compatibility
| Required PTO Horsepower | 13.4-22.4 kW |
| Required PTO Horsepower | 18-30 hp |
