Features
Front Gangs

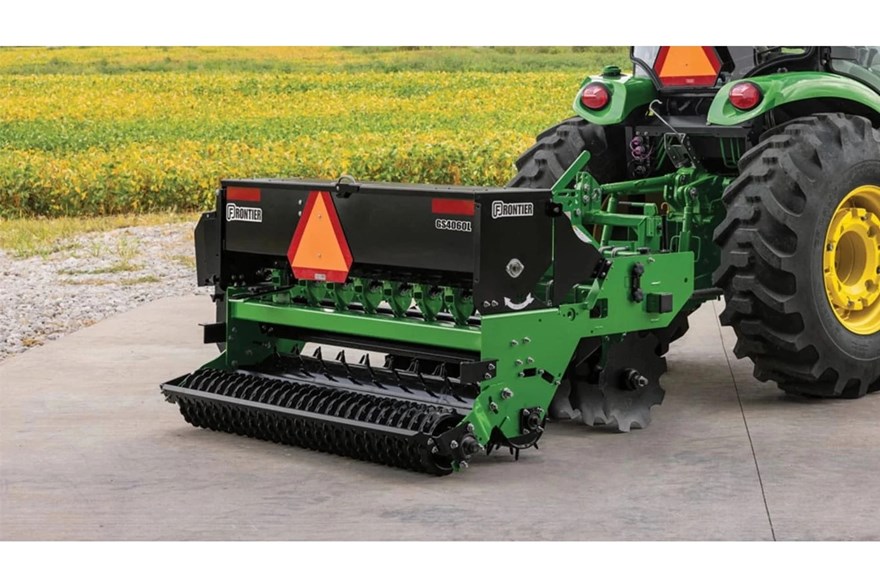

The GS40L Series equips users with a choice between front notched disc blades for cutting seed openings or aggressive tillage, and front spiked rollers that form seed pockets and can uproot existing vegetation when angled sharply, making it adaptable across diverse field conditions.
Spiked Drive Roller
Standard equipment on the GS40L, the spiked drive roller will crush clods, push down seeds, and dimple soil to trap moisture.
Nylon Cultipacker for Improved Germination
To increase germination, the in-base rear nylon cultipacker levels and breaks up soil clods, pressing the seed into the soil for improved seed-to-soil contact, firms the seed bed, and creates furrows to trap and channel water.
Weight
| Operational Weight | 713 lb. |
| Operational Weight | 323 kg |
| Spiked Roller And Primary Box | 194 kg |
| Spiked Roller And Primary Box | 427 lb. |
Spike Roller
| Roller Diameter (Front And Rear) | 6.6 in. |
| Front Roller Positions | Four positions |
| Number Of Roller Pins (Front And Rear) | 144 |
| Roller Diameter (Front And Rear) | 16.8 cm |
| Front Roller Positions - Angle | 0-21 degree (angle) |
Dimensions
| Working Width | 121.9 cm |
| Working Width | 48 in. |
| Overall Width | 56.75 in. |
| Overall Width | 144.2 cm |
Capacity
| Hopper Capacity | 35.2 m³ |
| Hopper Capacity | 1 bu |
Front Disc
| Disc Type | Notched |
| Number Of Discs | 6 |
| Disc Spacing | 7.5 in. |
| Disc Spacing | 19 cm |
| Disc Diameter | 40.6 cm |
| Disc Diameter | 16 in. |
| Front Disc Angle | 0 / 5 / 10 / 15 degree (angle) |
Hitch
| 3-Point Type | Limited Category 1 |
| Quick Hitch Compatible | Yes |
| Category | Limited Category 1 |
Cultipacker
| Diameter | 9.5 in. |
| Diameter | 24.1 cm |
| Number | 20 |
Seedcups
Warranty
Setup Time
Tractor Compatibility
| Horsepower | 15-35 hp |
| Horsepower | 11-26 kW |
