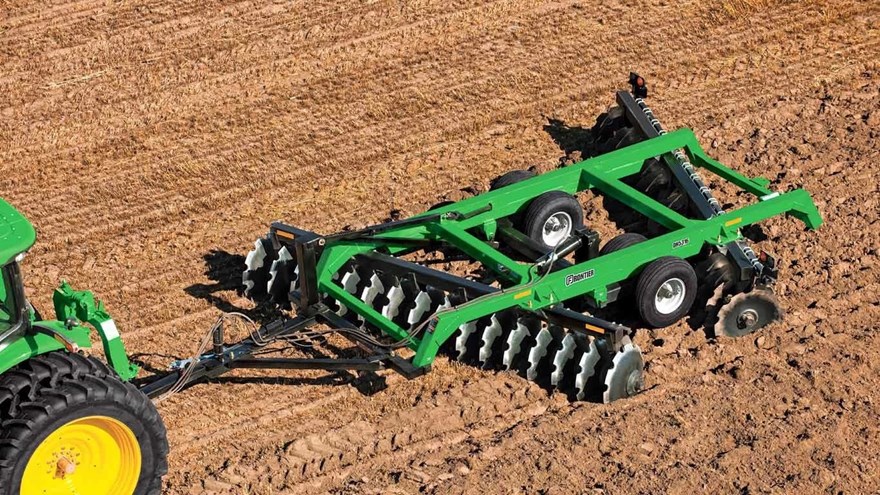

Features
End Washers and Wrenches Keep Gang Shaft End Nut Tight
End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life. Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.
Clevis Hitch Is Durable for Those Tough Working Conditions
The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.
Adjustable Disk Blade Scrapers Increase Productivity
Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.
Dimensions
| Weight Per Disk | 203.7 kg |
| Weight Per Disk | 449 lb. |
Disks
| Blade Concavity | Standard: high; Optional: low |
| Quantity | 21 |
| Spacing | 30.5 cm |
| Spacing | 12 in. |
| Notched (Front) Notched (Rear) | Standard |
Available blade sizes
| Blade Option Three | 813x9.5 mm |
| Blade Option Three | 32x0.375 in. |
| Blade Option Two | 762x9.5 mm |
| Blade Option Two | 30x0.375 in. |
| Blade Option One | 711x9.5 mm |
| Blade Option One | 28x0.375 in. |
Frame
| Tube Size | 6x6x0.375 in., 15.2x15.2x0.95 cm |
| Duty | Heavy |
| Type | Single Offset Rigid |
| Main Frame Tube | 6x6x0.375 in., 15.2x15.2x0.95 cm |
Tires
| Size | 12.5L x 15 10 ply in. |
| Type | Implement - Quantity of 4 |
| Wheel Hub Type | 8 Bolt |
Transport
| Wheel Hub Bearings | Dual tapered roller bearings |
| Ground Clearance With Base Blades | 9 in. |
| Ground Clearance With Base Blades | 22.9 cm |
| Transport - Width | 3.4 m |
| Transport - Width | 11 ft |
Setup Time
| Labor Hours | 2-3 for two people |
Tractor Requirements
| Recommended Drawbar HP Range | 89.5-111.9 kW |
| Recommended PTO HP Range | 141-176 hp |
| Recommended Drawbar HP Range | 120-150 hp |
| Recommended PTO HP Range | 105-132 kW |
Weight
| Weight Per Disk Blade | 203.7 kg |
| Weight Per Disk Blade | 449 lb. |
| Net | 8525 lb. |
| Net | 3866.9 kg |
Disk Gangs
| Rear Angle | 2 Positions degree (angle) |
| Scrapers | Adjustable |
| Bearing Wear Plates | Standard |
| Bearing Type | Oil bath tapered roller |
| Axle Size | 6.4 cm |
| Bearing Standards | Welded, Reinforced |
| Axle Size | 2.5 in. |
| Axle Material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Front Angle | 2 Positions degree (angle) |
Working Adjustments
| Maximum Penetration | 0.229 m |
| Maximum Penetration | 0.75 ft |
| Approximate Working Width | 10 ft |
| Approximate Working Width | 3 m |
Lighting and Safety
| Markings | SMV |
| Safety Tow Chain | Yes |
| Lights | Yes |
