Features
Control the Ground Speed with Ground-Driven Spiked Rollers

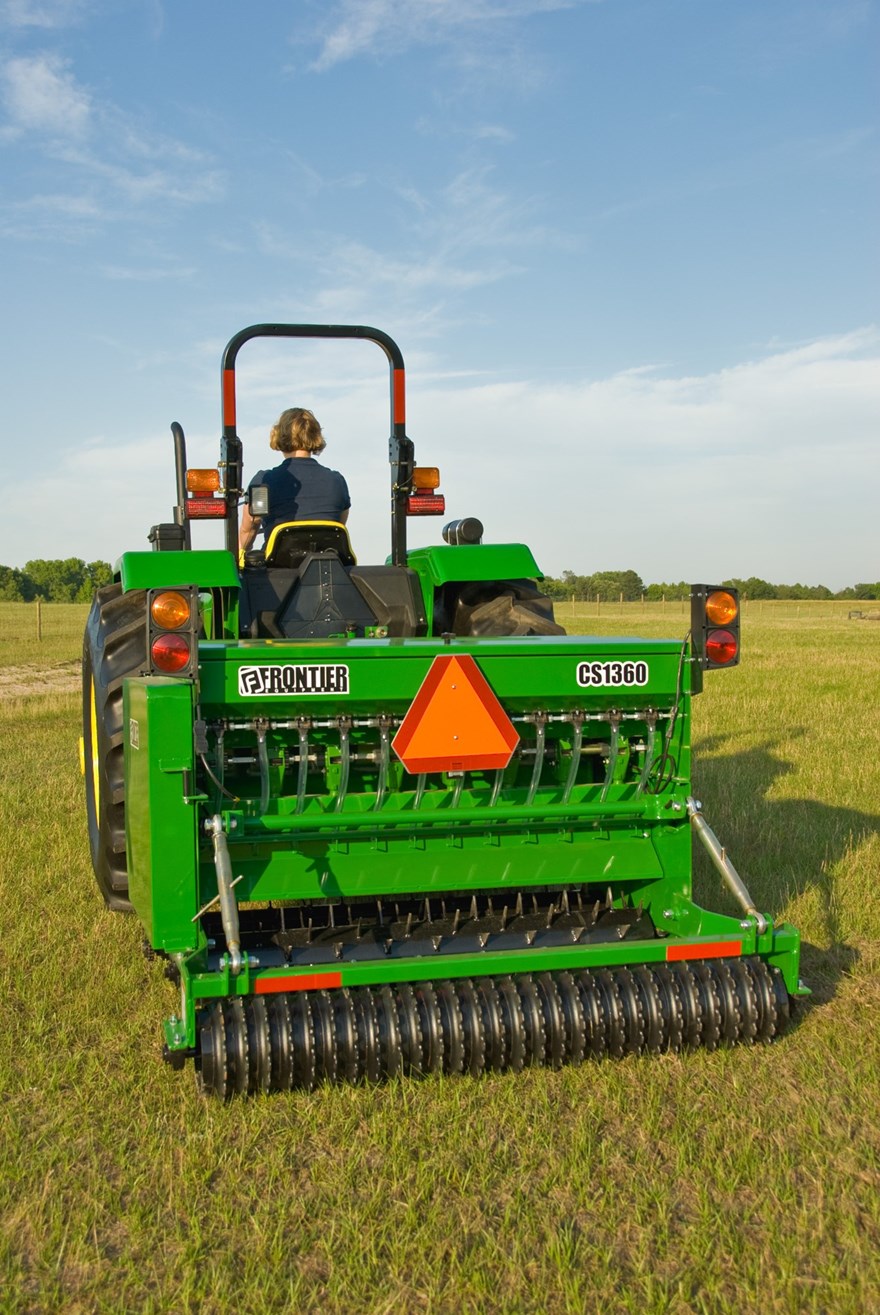

The CS Series Seeders feature ground-driven spiked rollers allowing accurate ground speed control by turning the rear roller 40% faster. This enables precise seeding in both new and existing grass or pasture beds.
Multiple Seedbox Configurations
CS Series seeders offer multiple seedbox configurations, including standard large-grain, native grass, small-seed legume, and fertilizer boxes, supporting diverse seeding needs and even enabling soil aeration and dethatching by disengaging boxes.
Rear Cultipacker Ensures Good Seed-to-Soil Contact
The rear cultipacker compresses and levels the seedbed, ensuring optimal seed-to-soil contact. With options of corrugated reinforced nylon and cast iron, and a torque arm for constant pressure, it enhances seedbed preparation.
Box Capacity
| Large Seed Box Capacity | 0.123 m³ |
| Large Seed Box Capacity | 3.5 bu |
| Legume, Small Seed Box Capacity | 0.529 m³ |
| Legume, Small Seed Box Capacity | 1.5 bu |
| Fertilizer Box Capacity | 0.123 m³ |
| Fertilizer Box Capacity | 3.5 bu |
| Native Grass Seed Box Capacity | 3.5 bu |
| Native Grass Seed Box Capacity | 0.123 m³ |
Roller
| Rear Spike Outside Diameter | 40 cm |
| Nylon Rear Cultipacker | Standard |
| Rear Spike Outside Diameter | 15.75 in. |
| Rear Spike (Quantity) | 114 |
| Front Spike (Quantity) | 72 |
| Spike Material | AR-500 Steel |
| Front Spike Outside Diameter | 15.75 in. |
| Front Spike Outside Diameter | 40 cm |
| Cast Iron Rear Cultipacker | Optional |
Hitch
| 3-Point Type Hitch | Category 1, Category 2 |
| iMatch™ Compatible | Yes |
| Quik-Coupler | Category 2 |
Setup Time
| Setup Time Labor Hour | 1 hr |
Dimensions
| Unit Height | 48 in. |
| Unit Height | 122 cm |
| Unit Length | 170 cm |
| Unit Length | 67 in. |
| Working Width | 152 cm |
| Working Width | 60 in. |
| Overall Width | 73 in. |
| Overall Width | 185 cm |
Tractor Compatibility
| Minimum Power | 30 hp |
| Minimum Power | 26 kW |
Drive ratio
| Spike Roller Drive Ratio | 15:22 |
| Seed Box Drive Ratio | 15:28 |
Weight
| Stainless Steel Fertilizer Box Weight | 66.7 kg |
| Stainless Steel Fertilizer Box Weight | 147 lb. |
| Second Large Seed Box Weight | 147 lb. |
| Native Grass Box Weight | 207 lb. |
| Base Machine Weight | 614.6 kg |
| Second Large Seed Box Weight | 66.7 kg |
| Native Grass Box Weight | 93.9 kg |
| Base Machine Weight | 1355 lb. |
| Small Seed Box Weight | 65 lb. |
| Small Seed Box Weight | 29.5 kg |
| Cast Iron Wheels Weight | 81.6 kg |
| Cast Iron Wheels Weight | 180 lb. |
Warranty
| Warranty Time Period | 1 year |
