Features

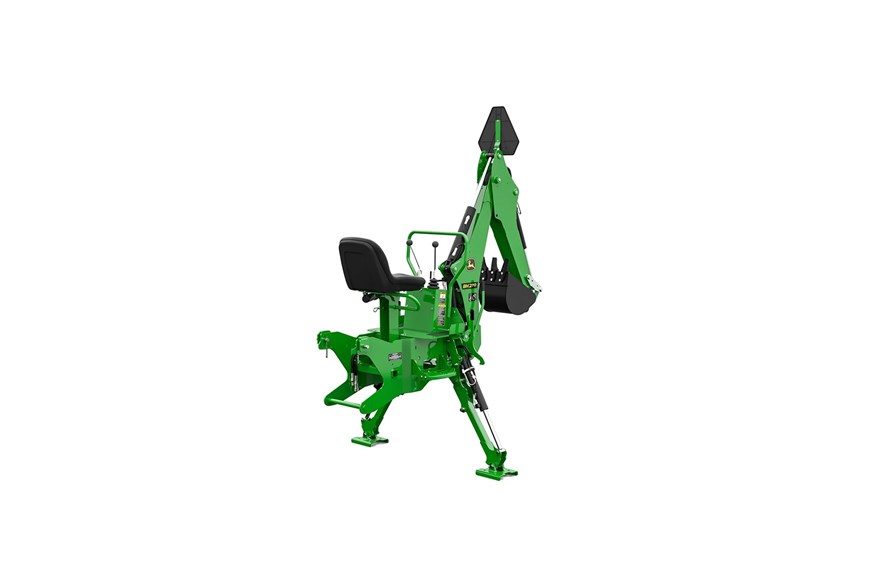

BH270 Backhoe Performance
Hydraulics are precisely matched to the tractor, delivering stronger digging performance and smoother, more controlled operation. Its durable subframe, bucket options, mechanical thumb, and ability to keep the 3‑point hitch draft arms attached all contribute to efficient, versatile use.
Backhoe Operator Comfort
The BH160 and BH270 Backhoes are built to maximize operator comfort throughout long workdays. A stable 3‑point stance, accessible grab handles, and a large boarding step make mounting and dismounting easier, while a high‑back seat and convenient access to stabilizers and locks enhance ease of use. Non‑slip grips on the operator platform further support safe, comfortable operation.
Backhoe Buckets
Buckets are available in a variety of sizes to fit the job for greater productivity. The Backhoe can be ordered with 20.3-cm (8-in.), 30.5-cm (12-in.), and 40.6-cm (16-in.) buckets. Replaceable bucket teeth are available.
Dimensions
| Digging Depth | 2.08 m |
| Digging Depth | 6 ft |
| Loading Height (Bucket at 60 Degrees) | 1.8 m |
| Loading Height (Bucket at 60 Degrees) | 5 ft |
| Reach From Center Line of Swing Pivot | 3 m |
| Reach From Center Line of Swing Pivot | 9 ft |
| Transport Height | 2 m |
| Transport Height | 6 ft |
| Loading Reach (Bucket at 60 Degrees) | 1.17 m |
| Loading Reach (Bucket at 60 Degrees) | 3 ft |
| Transport Overhang | 1.1 m |
| Transport Overhang | 3 ft |
| Undercut | 43 cm |
| Undercut | 17 in. |
| Stabilizer Spread Width - Up | 1.17 m |
| Stabilizer Spread Width - Up | 4 ft |
| Stabilizer Spread Width - Down | 1.9 m |
| Stabilizer Spread Width - Down | 6 ft |
Backhoe
| Swing Arc | 148 degree (angle) |
| Bucket Rotation | 176 degree (angle) |
| Boom Lift Capacity | 137 kg |
| Boom Lift Capacity | 302 lb. |
| SAE Dipperstick Digging Force | 7015 N |
| SAE Dipperstick Digging Force | 1577 lbf |
| SAE Bucket Digging Force | 11975 N |
| SAE Bucket Digging Force | 2692 lbf |
| Bucket Control Main Relief Valve Pressure | 172.4 kPa |
| Bucket Control Main Relief Valve Pressure | 2500 psi |
Bucket
| Bucket Widths | 20.3 cm |
| Bucket Widths | 8 in. |
| SAE Struck Capacity | 20.3 cm (8 in.) - 0.012 m3 - 0.42 cu ft cu ft; 30.5 cm (12 in.) - 0.019 m3 - 0.66 cu ft; 40.6 cm (16 in.) - 0.25 m3 - 0.9 cu ft |
| Heaped Capacity | 20.3 cm (8 in.) - 0.013 m3 - 0.46 cu ft; 30.5 cm (12 in.) - 0.022 m3 - 0.76 cu ft; 40.6 cm (16 in.) - 0.03 m3 - 1.06 cu ft |
| Shipping Weight | 20.3 cm (8 in.) - 40 lb (18.1 kg); 30.5 cm (12 in.) - 50 lb (22.7 kg); 40.6 cm (16 in.) - 60 lb (27.2 kg) |
Weight
| Weight With 0.4-m (16-in.) Bucket | 350 kg |
| Weight With 0.4-m (16-in.) Bucket | 773 lb. |
