Features

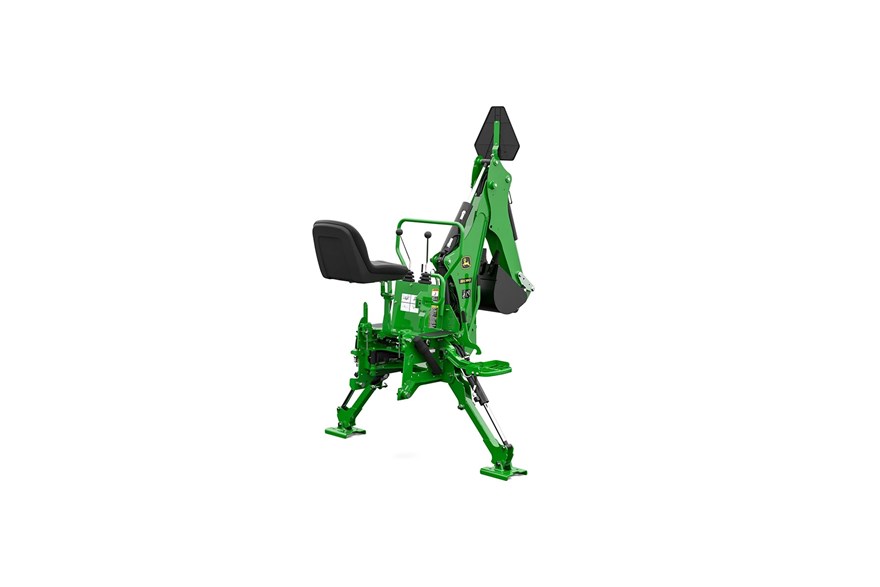

BH160 Backhoe Performance
The BH160 Backhoe is engineered to offer best‑in‑class performance at a competitive price, validated through benchmarking against similar models. It features a durable subframe, tool‑free installation, mid‑mower compatibility, multiple bucket options, and protective control boots. Optional accessories—including stabilizer pads and mechanical or hydraulic thumbs—enhance versatility for various heavy‑lifting and trenching tasks.
Backhoe Operator Comfort
The BH160 and BH270 Backhoes are built to maximize operator comfort throughout long workdays. A stable 3‑point stance, accessible grab handles, and a large boarding step make mounting and dismounting easier, while a high‑back seat and convenient access to stabilizers and locks enhance ease of use. Non‑slip grips on the operator platform further support safe, comfortable operation.
Backhoe Buckets
Buckets are available in a variety of sizes to fit the job for greater productivity. The Backhoe can be ordered with 20.3-cm (8-in.), 30.5-cm (12-in.), and 40.6-cm (16-in.) buckets. Replaceable bucket teeth are available.
Dimensions
| Digging Depth | 1.9 m |
| Digging Depth | 6 ft |
| Loading Height (Bucket at 60 Degrees) | 1.5 m |
| Loading Height (Bucket at 60 Degrees) | 5 ft |
| Reach From Center Line of Swing Pivot | 2.6 m |
| Reach From Center Line of Swing Pivot | 8 ft |
| Transport Height | 1.7 m |
| Transport Height | 6 ft |
| Loading Reach (Bucket at 60 Degrees) | 0.8 m |
| Loading Reach (Bucket at 60 Degrees) | 2 ft |
| Transport Overhang | 0.9 m |
| Transport Overhang | 3 ft |
| Undercut | 40 cm |
| Undercut | 5 in. |
| Stabilizer Type | Hydraulic |
| Stabilizer Spread Width - Up | 1.5 m |
| Stabilizer Spread Width - Up | 4 ft |
| Stabilizer Spread Width - Down | 1.9 m |
| Stabilizer Spread Width - Down | 6 ft |
Backhoe
| Swing Arc | 150 degree (angle) |
| Bucket Rotation | 180 degree (angle) |
| Boom Lift Capacity | 129 kg |
| Boom Lift Capacity | 285 lb. |
| SAE Dipperstick Digging Force | 5280 N |
| SAE Dipperstick Digging Force | 1187 lbf |
| SAE Bucket Digging Force | 9056 N |
| SAE Bucket Digging Force | 2036 lbf |
| Angle of Departure | 20 degree (angle) |
Bucket
| Bucket Widths | 20 cm |
| Bucket Widths | 8 in. |
| SAE Struck Capacity | 0.2 m (8 in.) - 0.011 m3 (0.42 cu ft); 0.3 m (12 in.) - 0.019 m3 (0.66 cu ft); 0.4 m (16 in.) - 0.025 m3 (0.9 cu ft) |
| Heaped Capacity | 0.2 m (8 in.) - 0.013 m3 (0.46 cu ft); 0.3 m (12 in.) - 0.022 m3 (0.76 cu ft); 0.4 m (16 in.) - 0.03 m3 (1.06 cu ft) |
| Shipping Weight | 0.2 m (8 in.) - 17 kg (38 lb); 0.3 m (12 in.) - 22 kg (49 lb); 0.4 m (16 in.) - 25 kg (55 lb) |
Weight
| Weight With 0.4-m (16-in.) Bucket | 309 kg |
| Weight With 0.4-m (16-in.) Bucket | 682 lb. |
| Weight With 0.4-m (16-in.) Bucket Including Subframe | 334 kg |
| Weight With 0.4-m (16-in.) Bucket Including Subframe | 736 lb. |
