Features

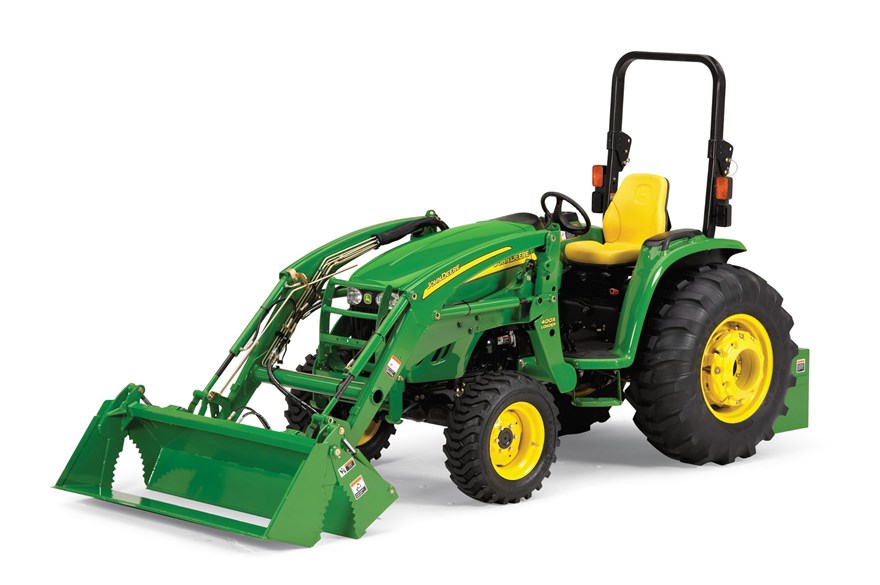

Serrated Edge to Grasp Material
The AY11E Series is equipped with serrated edges that enhance the bucket's ability to firmly grasp material, ensuring secure movement and improving overall performance.
Fast, Easy Attachment
Designed for fast and easy attachment, the bucket fits 300 to 500 Series Loaders. It utilizes quick-change and global attaching systems to streamline the process of lining up connecting points and locking in place.
Strong and Robust Frame for Added Durability
The AY11E Series Four-in-One Bucket features a robust steel frame with welded components and high-tensile, heavy-gauge steel to ensure maximum durability and strength during operations.
Dimensions
| Height | 26.94 in. |
| Height | 68.4 cm |
| Cutting Width | 72 in. |
| Cutting Width | 182.9 cm |
| Depth | 71.1 cm |
| Depth | 28.01 in. |
| Width | 187.7 cm |
| Width | 73.88 in. |
| Clam Opening | 72.3 cm |
| Clam Opening | 28.45 in. |
Weight
| Operational Weight | 192.8 kg |
| Operational Weight | 425 lb. |
| Shipping Weight | 204.1 kg |
| Shipping Weight | 450 lb. |
Hydraulic Cylinders
| Hydraulic Cylinders Type | Two double-acting |
Clamp force
| Clamp Force Closed | 10577.9 N |
| Clamp Force Closed | 2378 lb-ft |
| Clamp Force Open | 16035.8 N |
| Clamp Force Open | 3605 lb-ft |
Warranty
| Warranty Time Period | 1 year |
Attachment Carrier
| Current Series Style | 300, 400, and 500 |
Setup Time
| Set-Up Time Labor Hours | 0.25 hr |
