Features
Quick and Easy Connection to Loader
Attaching the AV50 Series Root Grapple to a John Deere loader is easy with quick-change attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.
Heavy-Duty Design to Tackle Tough Jobs

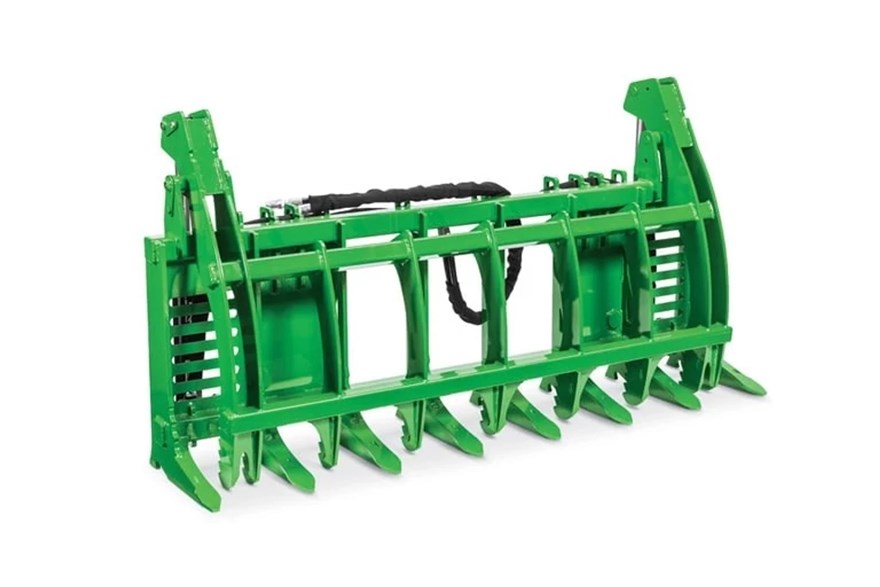

The AV50 Series Hydraulic Root Grapple is a lightweight, full-width tool designed for versatile tasks like leveling, root removal, and tree handling, offering strong clamping and improved balance without sacrificing lift capacity.
Stability for Easy Compact Storage
The base frame and welded feet provide the AV50 Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.
Dimensions
| Overall Base Width | 72.4 in. |
| Overall Base Width | 183.9 cm |
| Top Clamp Width | 64 in. |
| Top Clamp Width | 162.6 cm |
| Depth (Closed) | 19.5 in. |
| Depth (Closed) | 49.5 cm |
| Height (Closed) | 37 in. |
| Height (Closed) | 94 cm |
| Height (Open) | 46.5 in. |
| Height (Open) | 118.1 cm |
| Grapple Opening | 44 in. |
| Grapple Opening | 111.8 cm |
| Weight | 570 lb. |
| Weight | 258.5 kg |
| Shipping Weight | 1183 lb. |
| Shipping Weight | 536.6 kg |
| Bottom Frame Steel Thickness | 0.5 in. |
| Bottom Frame Steel Thickness | 1.3 cm |
Grapple Tines
| Upper Tines - Quantity | 7 |
| Lower Tines - Quantity | 8 |
| Grapple Tine Spacing | 10.5 in. |
| Grapple Tine Spacing | 26.3 cm |
| Bottom Tine Working Length | 12 in. |
| Bottom Tine Working Length | 30.5 cm |
Capacity
| Grapple Clamping Force | 5645 lb-ft |
| Grapple Clamping Force | 25.1 N |
| Maximum Clamping Diameter | 43.4 in. |
| Maximum Clamping Diameter | 110.2 cm |
| Minimum Clamping Diameter | 1.5 in. |
| Minimum Clamping Diameter | 3.8 cm |
Tractor Requirements
| Tractor HP Min./Max. | 50-140 hp |
| Tractor HP Min./Max. | 37.3-104.4 kW |
Hydraulic Cylinders
| Type | 2″ bore x 12″ stroke x 1-1/4″ rod |
| Quantity | 2 cylinders |
| Max Hydraulic Pressure | 3000 psi |
| Max Hydraulic Pressure | 207 bar |
Grapple Clamping Force
| Maximum | 5645 lb-ft |
| Maximum | 25.1 N |
Warranty
| Time Period | 1 Year Warranty |
Loader Interface
| Compatibility | 500, 600 Series (Global Carrier) |
