Features
Replaceable Wear Tips

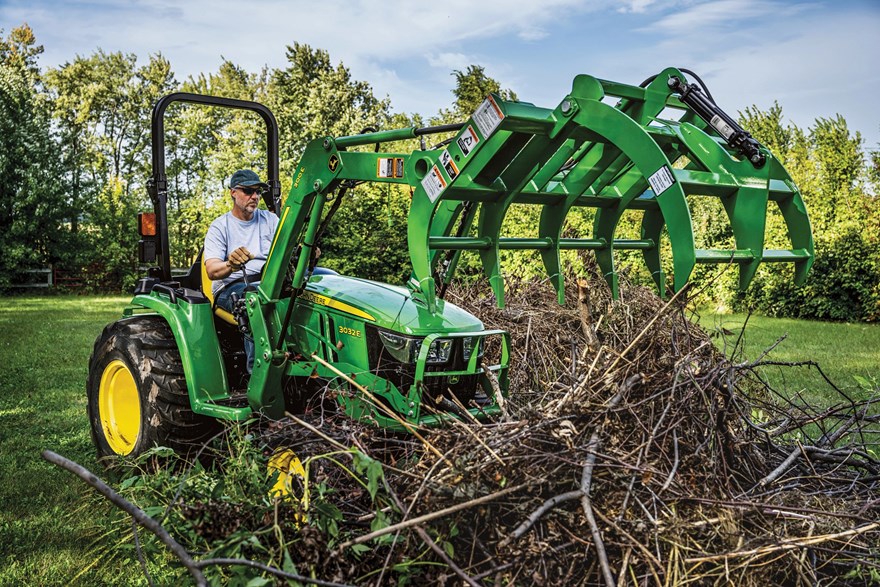

The root grapple is designed with replaceable wear tips to prolong the implement's wear life. This feature aids in easy maintenance, ensuring the equipment remains in peak working condition despite extensive utilization.
Quick Attaching System
Attaching the root grapple to John Deere loaders is facilitated through quick change attaching systems. Simply align loader connecting points to the attachment frame and lock in place. This ease of connection saves time and enhances productivity across operations. Note: Image representative of AV20 series.
Optional Parking Stand Kit
An optional parking stand kit is available for the AV20H Root Grapple. This kit allows for stable and secure parking, reducing risks of tipping over and simplifying tasks like maintenance or attachment, enhancing overall operational safety. NOTE: If using optional parking stands, completely close grapple clamps. Always place the unit on a solid level surface.
Dimensions
| Height | 23 in. |
| Height | 58.4 cm |
| Grapple Opening | 27 in. |
| Grapple Opening | 68.6 cm |
| Cutting Width | 60 in. |
| Cutting Width | 152.4 cm |
| Depth | 98.6 cm |
| Depth | 38.8 in. |
| Width | 152.4 cm |
| Width | 60 in. |
Grapple Clamping Force
| Maximum | 12899.8 N |
| Maximum | 2900 lb-ft |
Grapple Tines
| Grapple Tine Spacing | 15 in. |
| Grapple Tine Spacing | 38.1 cm |
| Upper Tines - Quantity | 5 |
| Lower Tines - Quantity | 3 |
Warranty
Weight
| Shipping | 455 lb. |
| Shipping | 206.4 kg |
| Operational | 359 lb. |
| Operational | 162.8 kg |
Hydraulic Cylinders
Setup Time
Attachment Type
| Current Series Style | 300CX - 400 |
