Features
Greaseable Pivot Points

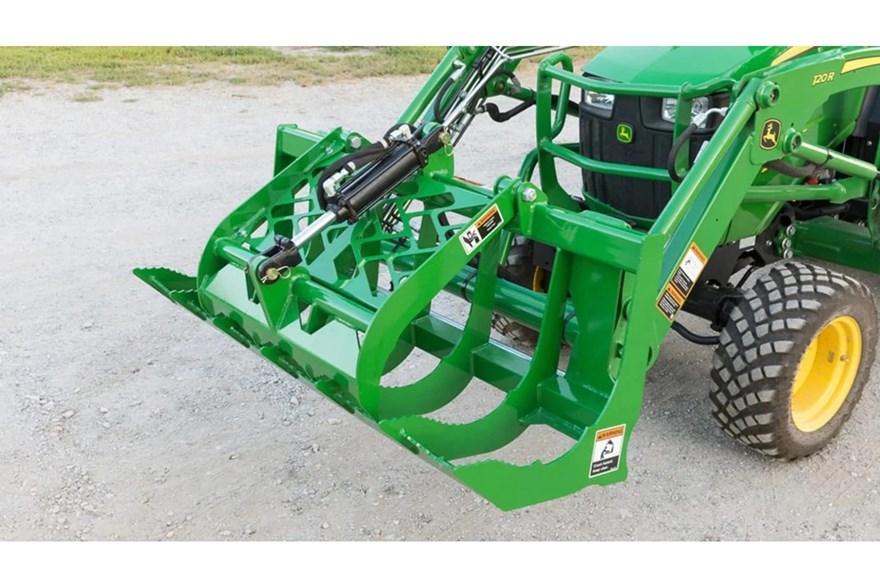

All pivot points of the AV20F Series Root Grapple are greaseable, ensuring easy maintenance and long-lasting performance. This feature helps maintain the grapple in optimal working condition, enhancing productivity and durability.
Integrated Base Support
The integrated base support of the root grapple prevents it from rolling or tipping over when detached from the loader attachment. This stability feature ensures safety and ease of handling during storage or transportation.
Quick and Easy Loader Connection
Attaching the AV20F Series Root Grapple to a John Deere loader is straightforward with quick-change attaching systems. Simply align the loader's connecting points to the attachment frame and securely lock in place.
Dimensions
| Width | 53 in. |
| Width | 134.6 cm |
| Height | 25 in. |
| Height | 63.5 cm |
| Depth | 23.2 in. |
| Depth | 58.9 cm |
| Cutting Width | 53 in. |
| Cutting Width | 134.6 cm |
| Grapple Opening | 36 in. |
| Grapple Opening | 91.4 cm |
Grapple Clamping Force
| Maximum | 945 lb-ft |
| Maximum | 4203.5 N |
Grapple Tines
| Upper Tines - Quantity | 4 |
| Lower Tines - Quantity | 7 |
| Grapple Tine Spacing | 8.5 in. |
| Grapple Tine Spacing | 21.6 cm |
Warranty
Weight
| Operational | 203 lb. |
| Operational | 92 kg |
| Shipping | 223 lb. |
| Shipping | 101.1 kg |
Hydraulic Cylinders
Setup Time
Attachment Type
| Current Series Style | 100, 200 and 300 (300 on 3E Tractor only) |
