Features
Extended Life and Easy Maintenance

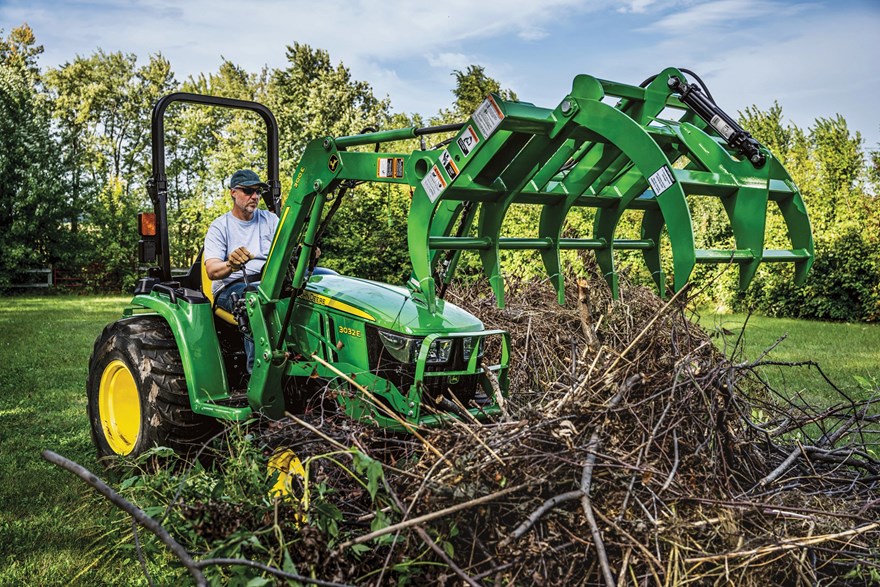

For extended implement life and easy maintenance, all wear tips on the root grapple are replaceable. This feature ensures the grapple remains in top working condition, saving time and cost on replacements.
Parking Stand Kit for Root Grapples
An optional parking stand kit is available, making storage and handling easy. When using the kit, completely close the grapple clamps and place the unit on a solid level surface to ensure stability.
Quick Attaching System
Attaching the root grapple to John Deere loaders is facilitated through quick change attaching systems. Simply align loader connecting points to the attachment frame and lock in place. This ease of connection saves time and enhances productivity across operations. Note: Image representative of AV20 series.
Dimensions
| Height | 25 in. |
| Height | 63.5 cm |
| Grapple Opening | 50 in. |
| Grapple Opening | 127 cm |
| Cutting Width | 62 in. |
| Cutting Width | 157.5 cm |
| Depth | 137.2 cm |
| Depth | 54 in. |
| Width | 157.5 cm |
| Width | 62 in. |
Grapple Clamping Force
| Maximum | 12010.2 N |
| Maximum | 2700 lb-ft |
Grapple Tines
| Grapple Tine Spacing | 15 in. |
| Grapple Tine Spacing | 38.1 cm |
| Upper Tines - Quantity | 5 |
| Lower Tines - Quantity | 4 |
Warranty
Weight
| Shipping | 830 lb. |
| Shipping | 376.5 kg |
| Operational | 790 lb. |
| Operational | 358.3 kg |
Hydraulic Cylinders
Setup Time
Attachment Type
| Current Series Style | 400CX - 500 |
