Features
Stay Safe With a Spring-Loaded Steel Trip Edge

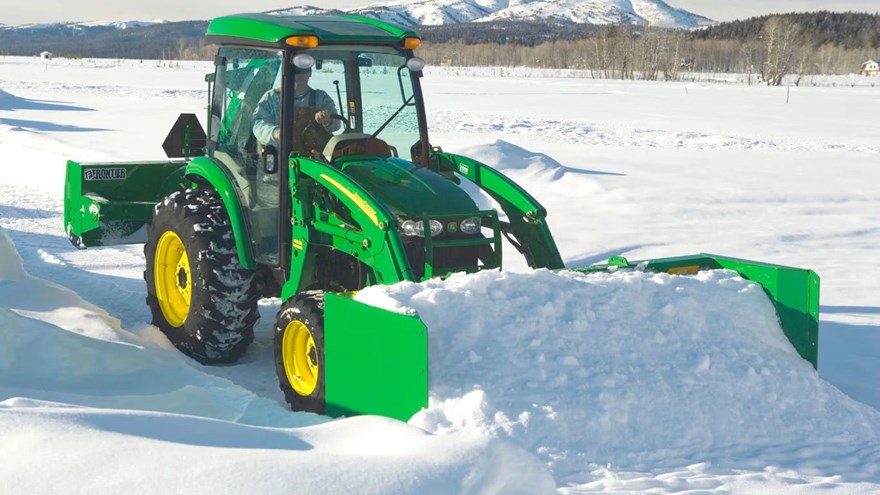

The AS11E Snow Push features a spring-loaded, steel trip edge that ensures safety by protecting the cutting edge from collisions with immovable objects.
Back Drag Attachment
This snow push includes a field-installed back drag kit, allowing operators to efficiently move snow from hard-to-reach areas that other blades can't access.
Field-Installed Rubber Edge Kit
The replacement rubber edge kits come in different lengths, and are for the back drag attachment on AS11E Snow Pushes. The rubber edges are for fresh and dry snow pushing, removing the piles of snow a steel blade leaves behind. Because they are reversible, they have a longer wear life.
Dimensions
| Width | 119.875 in. |
| Width | 304.5 cm |
| Height | 39.8 in. |
| Height | 101.1 cm |
| Depth | 41.5 in. |
| Depth | 105.4 cm |
| Cutting Width | 119 in. |
| Cutting Width | 303.5 cm |
Moldboard
| Moldboard Thickness | 0.135 in. |
| Moldboard Thickness | 3.4 mm |
| Moldboard Thickness | 10 gauge |
| Height | 38.1 in. |
| Height | 96.8 cm |
Skid Shoes
Warranty
Setup Time
Weight
| Equipment | 980 lb. |
| Equipment | 444.5 kg |
| Shipping | 1030 lb. |
| Shipping | 467.2 kg |
Cutting Edge
Attachment Carrier
| Current Series Attachment Carrier Style | 300, 400, 500 |
