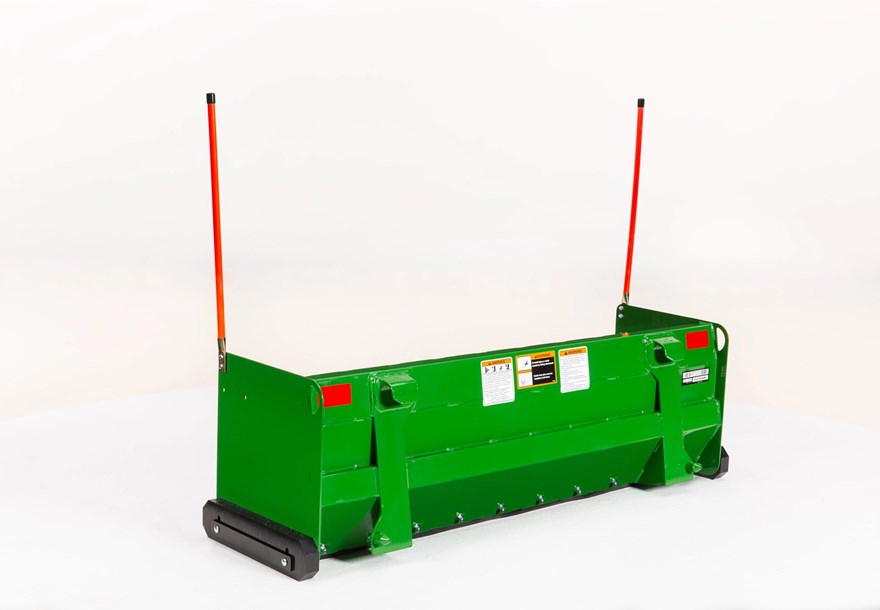

Features
Increased Uptime with Quik-Tatch Capability
Hook up the snow push by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.
Reversible Cutting Edge Increases Life of Snow Push
The cutting edge is reversible and adjustable to increase the wear life of the part. The steel blade comes standard, but an optional rubber blade is available.
Optional Pull-Back Kit
An optional pull-back kit is available to reach snow other blades cannot reach, such as away from a garage, retaining wall, and curbs. It is available in either a steel edge or a rubber edge.
Dimensions
| Width | 50.6 in. |
| Width | 128.5 cm |
| Height | 19.3 in. |
| Height | 49 cm |
| Depth | 21.6 in. |
| Depth | 54.9 cm |
| Cutting Width | 48 in. |
| Cutting Width | 121.9 cm |
Moldboard
| Moldboard Thickness | 0.1046 in. |
| Moldboard Thickness | 2.66 mm |
| Moldboard Thickness | 12 gauge |
| Height | 19 in. |
| Height | 48.3 cm |
Skid Shoes
Warranty
Setup Time
Weight
| Equipment | 142 lb. |
| Equipment | 64.4 kg |
Cutting Edge
Attachment Carrier
| Current Series Attachment Carrier Style | 100, 200 |
Additional Information
