Features
Quick and Easy Attaching System

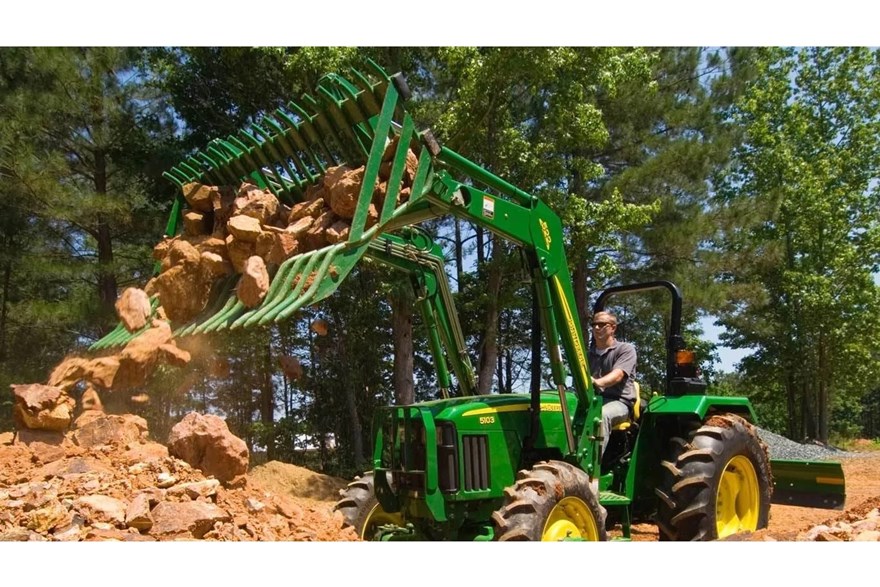

The AR10G Rock Bucket features a quick-change and global attaching system that fits current 300 to 700 Series Loader attachment carriers. This system makes it easy to attach by simply lining up the loader's connecting points and locking it in place.
Robust Design and Compatibility
Designed with sturdy tine tips interlaced for increased strength, this rock bucket is ideal for sorting materials and clearing debris. It is fully compatible with global-style loaders and comes with optional grapples to suit specific needs.
Hydraulic Grapple Conversion
The bucket supports a hydraulic grapple conversion kit that enhances its functionality. This optional kit allows the bucket to efficiently grasp materials and operate with reinforced ribs, providing excellent strength for handling various tasks.
Weight
| 2-in. Tine Spacing Operating | 739 lb. |
| 2-in. Tine Spacing Operating | 335.2 kg |
| 2-in. Tine Spacing Shipping | 814 lb. |
| 2-in. Tine Spacing Shipping | 369.2 kg |
| 3-in. Tine Spacing Operating | 619 lb. |
| 3-in. Tine Spacing Operating | 280.8 kg |
| 3-in. Tine Spacing Shipping | 694 lb. |
| 3-in. Tine Spacing Shipping | 314.8 kg |
Optional Rock Bucket Grapple
| Available | Yes |
| Grapple Opening | 60 in. |
| Grapple Opening | 152.4 cm |
| Clamp Force - Open | 2400 lb-ft |
| Clamp Force - Open | 10675.7 N |
| Clamp Force - Closed | 2060 lb-ft |
| Clamp Force - Closed | 9163.3 N |
Tine
| Spacing | 2, 3 in. |
| Spacing | 5.1, 7.6 cm |
| Diameter | 1.125 in. |
| Diameter | 2.9 cm |
| Length | 39 in. |
| Length | 99.1 cm |
Dimensions
| Width | 74.4 in. |
| Width | 189 cm |
| Height | 21.7 in. |
| Height | 55.1 cm |
| Depth | 48 in. |
| Depth | 121.9 cm |
| Cutting Width | 75 in. |
| Cutting Width | 190.5 cm |
Warranty
Setup Time
Attachment Carrier
| Current Series Style | Global |
