Features
Quick and Easy Connection
Attaching the AR10 Series Rock Buckets to a John Deere loader is easy with quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.
Bucket Grapple Field Conversion Kit for AR10 Rock Buckets
Hydraulic grapple conversion kits are for use with rock bucket loader attachments.
Grapple Conversion Kit for AR10 Rock Buckets
This grapple conversion kit provides a tight grasp and has reinforced ribs for added strength to rip up hard ground up to a depth of 11 in. (27.9 cm).
Weight
| 2-in. Tine Spacing Operating | 632 lb. |
| 2-in. Tine Spacing Operating | 286.7 kg |
| 2-in. Tine Spacing Shipping | 707 lb. |
| 2-in. Tine Spacing Shipping | 320.7 kg |
| 3-in. Tine Spacing Operating | 528 lb. |
| 3-in. Tine Spacing Operating | 239.5 kg |
| 3-in. Tine Spacing Shipping | 603 lb. |
| 3-in. Tine Spacing Shipping | 273.5 kg |

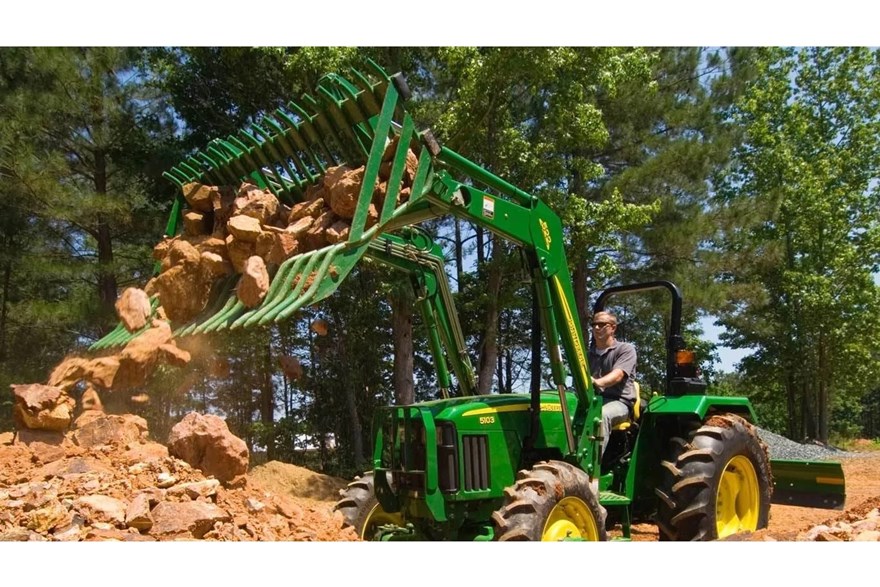

Optional Rock Bucket Grapple
| Available | Yes |
| Grapple Opening | 60 in. |
| Grapple Opening | 152.4 cm |
| Clamp Force - Open | 2400 lb-ft |
| Clamp Force - Open | 10675.7 N |
| Clamp Force - Closed | 2060 lb-ft |
| Clamp Force - Closed | 9163.3 N |
Tine
| Spacing | 2, 3 in. |
| Spacing | 5.1, 7.6 cm |
| Diameter | 1.125 in. |
| Diameter | 2.9 cm |
| Length | 39 in. |
| Length | 99.1 cm |
Dimensions
| Width | 74.4 in. |
| Width | 189 cm |
| Height | 21.7 in. |
| Height | 55.1 cm |
| Depth | 45 in. |
| Depth | 114.3 cm |
| Cutting Width | 75 in. |
| Cutting Width | 190.5 cm |
Warranty
Setup Time
Attachment Carrier
| Current Series Style | 300, 400, and 500 |
