Features
Handle Heavy Loads
Designed to accommodate heavy loads, this pallet fork supports up to 5,500 lb. (2495 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.
Steel Frame is Strong for Tough Jobs
The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.
Floating-Tine Pallet Forks
Floating-tine pallet forks on the AP13 Series allow the tines to float while picking up and removing pallets on uneven terrain. Tines can be made rigid at any position along the shaft by tightening the set screws.

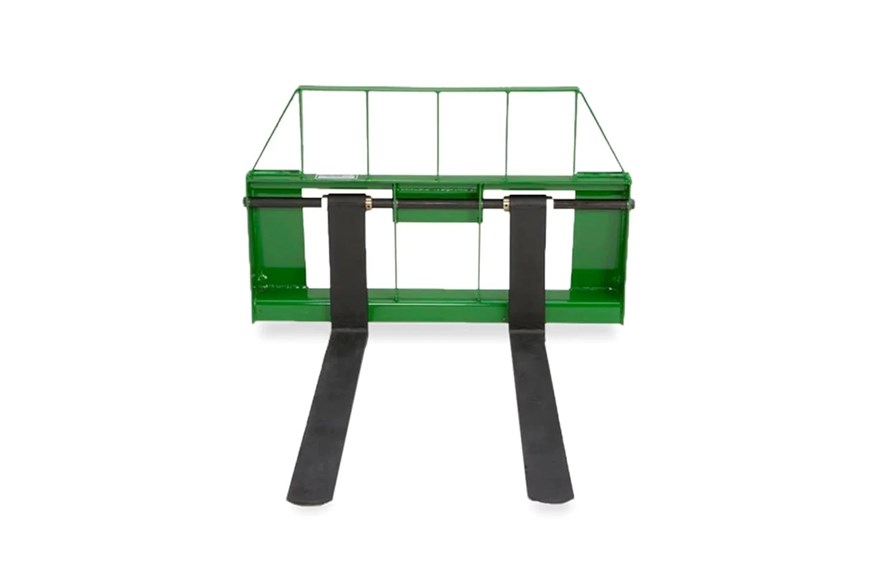

Note: Image represents one model in Frontier pallet fork line.
Fork Tines
| Fork Tines Type | Floating |
| Capacity | 5500 lb. |
| Capacity | 2494.8 kg |
| Section | 1.6x5.1 in. |
| Section | 40x130 mm |
| Fork Tine Length | 42 in. |
| Fork Tine Length | 106.7 cm |
Dimensions
| Overall Height | 32 in. |
| Overall Height | 81.3 cm |
| Overall Width | 49 in. |
| Overall Width | 124.5 cm |
| Overall Length | 52 in. |
| Overall Length | 132.1 cm |
Warranty
Weight
| Operational | 440 / 460 lb. |
| Operational | 199.6 / 208.7 kg |
| Shipping | 480 / 500 lb. |
| Shipping | 217.7 / 226.8 kg |
Attachment Carrier
| Current Series Style | Global |
Setup Time
