Features
Steel Frame is Strong for Tough Jobs
The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.
Handle Heavy Loads with Frontier™ Pallet Forks
Designed to accommodate heavy loads, this pallet fork supports up to 10,000 lb (4535.9 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.

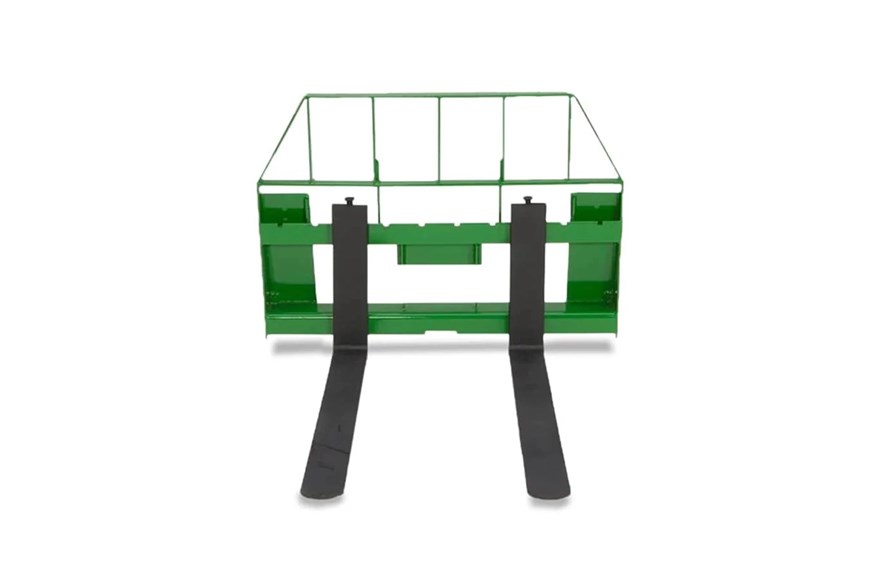

Note: Image represents one model in Frontier pallet fork line.
Fixed-Tine Pallet Forks
Fixed-tine pallet forks on the AP12 Series keep the tines in a set position for consistent handling of pallets. Tines can be moved to any position simply by releasing the locking pin, so no tools are required.
Fork Tines
| Fork Tines Type | Fixed |
| Capacity | 10000 lb. |
| Capacity | 4536 kg |
| Section | 2x5 in. |
| Section | 51x127 mm |
| Fork Tine Length | 48 in. |
| Fork Tine Length | 121.9 cm |
Dimensions
| Overall Height | 41 in. |
| Overall Height | 104.1 cm |
| Overall Width | 59 in. |
| Overall Width | 149.9 cm |
| Overall Length | 60.2 in. |
| Overall Length | 152.9 cm |
Warranty
Weight
| Operational | 812 lb. |
| Operational | 368.3 kg |
| Shipping | 852 lb. |
| Shipping | 386.5 kg |
Attachment Carrier
| Current Series Style | Global Category 2 |
Setup Time
