Features

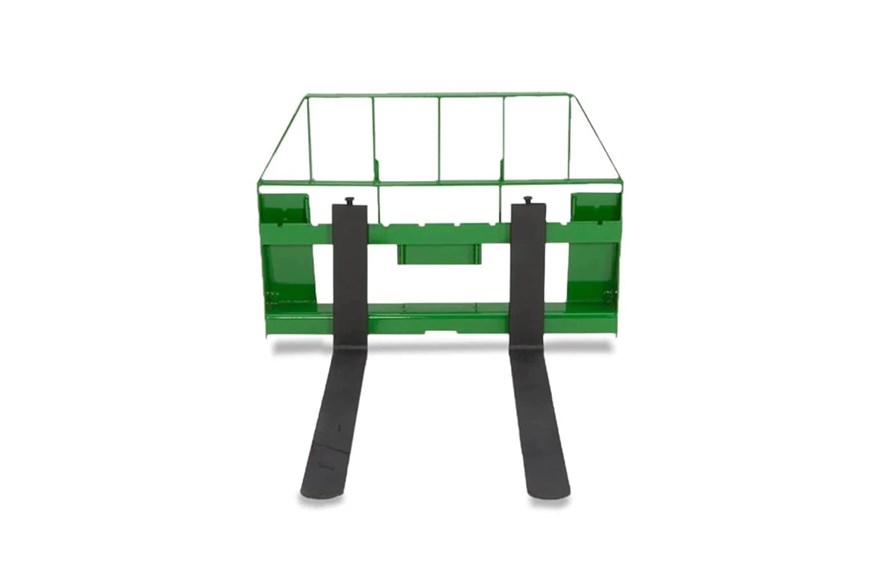

Fixed-Tine Pallet Forks
Fixed-tine pallet forks on the AP12 Series keep the tines in a set position for consistent handling of pallets. Tines can be moved to any position simply by releasing the locking pin, so no tools are required.
Frontier™ Pallet Forks Handle Heavy Loads
Designed to accommodate heavy loads, this fixed pallet fork supports up to 5500 lb. (2494.8 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.
Steel Frame is Strong for Tough Jobs
The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.
Fork Tines
| Fork Tines Type | Fixed |
| Capacity | 5500 lb. |
| Capacity | 2494.8 kg |
| Section | 1.6x5.1 in. |
| Section | 40x130 mm |
| Fork Tine Length | 42 in. |
| Fork Tine Length | 106.7 cm |
Dimensions
| Overall Height | 35 in. |
| Overall Height | 88.9 cm |
| Overall Width | 50 in. |
| Overall Width | 127 cm |
| Overall Length | 52 in. |
| Overall Length | 132.1 cm |
Warranty
Weight
| Operational | 456 / 478 lb. |
| Operational | 206.8 / 216.9 kg |
| Shipping | 496 / 526 lb. |
| Shipping | 225 / 238.6 kg |
Attachment Carrier
| Current Series Style | Global |
Setup Time
