Features

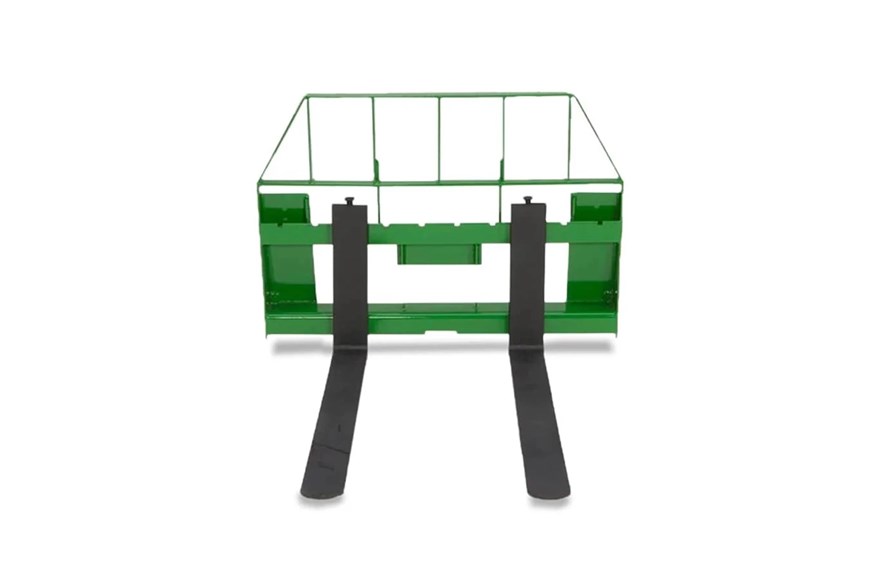

Fixed-Tine Pallet Forks
Fixed-tine pallet forks on the AP12 Series keep the tines in a set position for consistent handling of pallets. Tines can be moved to any position simply by releasing the locking pin, so no tools are required.
Steel Frame is Strong for Tough Jobs
The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.
Versatile Carrying Capacity
Designed to accommodate heavy loads, this fixed pallet fork supports up to 3750 lb (1701 kg). Its robust capacity ensures efficient material handling with compatibility across a range of loader models.
Fork Tines
| Fork Tines Type | Fixed |
| Capacity | 3750 lb. |
| Capacity | 1701 kg |
| Section | 1.4x4.7 in. |
| Section | 35x120 mm |
| Fork Tine Length | 42 in. |
| Fork Tine Length | 106.7 cm |
Dimensions
| Overall Height | 34 in. |
| Overall Height | 86.4 cm |
| Overall Width | 50 in. |
| Overall Width | 127 cm |
| Overall Length | 51 in. |
| Overall Length | 130 cm |
Warranty
Weight
| Operational | 380 / 395 lb. |
| Operational | 172.4 / 179.2 kg |
| Shipping | 420 / 435 lb. |
| Shipping | 190.5 / 197.3 kg |
Attachment Carrier
| Current Series Style | 200 - 500 |
Setup Time
