Features
Multiple Tine Lengths

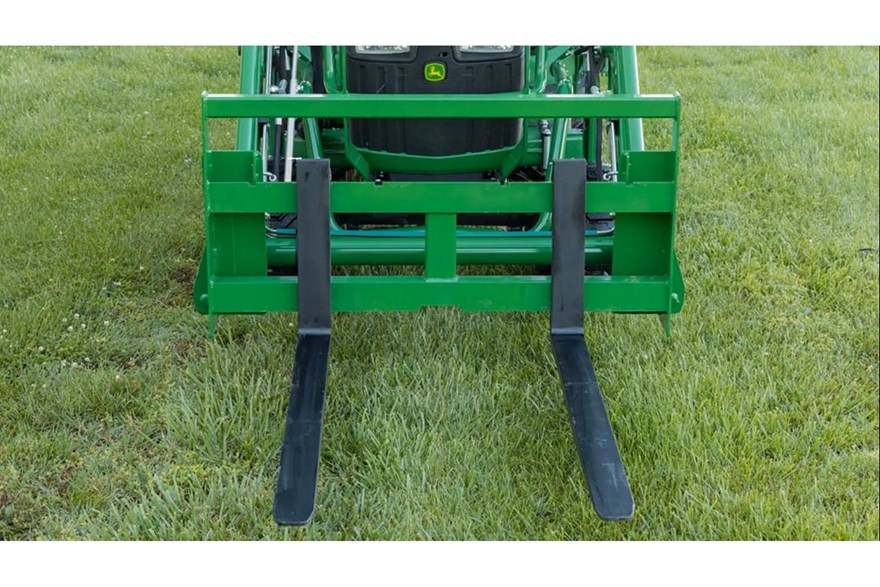

The AP10F offers versatility with two tine length options, 36 and 42 in. (91.4 and 106.7 cm), allowing producers to select the most suitable length for their specific tasks. This flexibility accommodates various operational needs.
Fast and Easy Attachment
The Quick-Change capability of the pallet fork allows for fast and easy attachment. It enables the operator to line up the loader’s connecting point to the attachment frame, pick it up, and lock it into place, ensuring an efficient workflow.
Adjustable Tine Positioning
The forks can easily be adjusted to three different positions to accommodate different pallet sizes. This adaptability helps in efficiently managing various types of loads, increasing the operational efficiency and uptime of the equipment.
Fork Tines
| Section | 25.4x76.6 mm |
| Section | 1.0x3.0 in. |
| Capacity | 1250 lb. |
| Capacity | 567 kg |
| Fork Tines Type | Fixed |
| Fork Tine Length | 91.4 cm |
| Fork Tine Length | 36 in. |
Dimensions
| Overall Height | 62.2 cm |
| Overall Height | 24.5 in. |
| Overall Length | 45 in. |
| Overall Length | 114.3 cm |
| Overall Width | 125.1 cm |
| Overall Width | 49.24 in. |
Warranty
Weight
| Shipping | 214 / 242 lb. |
| Shipping | 97.1 / 109.8 kg |
| Operational | 170 / 198 lb. |
| Operational | 77.1 / 89.8 kg |
Attachment Carrier
Additional Information
Setup Time
