Features
Increased Uptime with Quick-Change Capability
Hook up the manure fork by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.
Multiple Working Widths to Match Tractor Requirements
Choose between two working widths to match the producer’s current tractor requirements – 50-in. or 60-in. (127-cm or 152.4-cm) working width.
Strong Build and Design

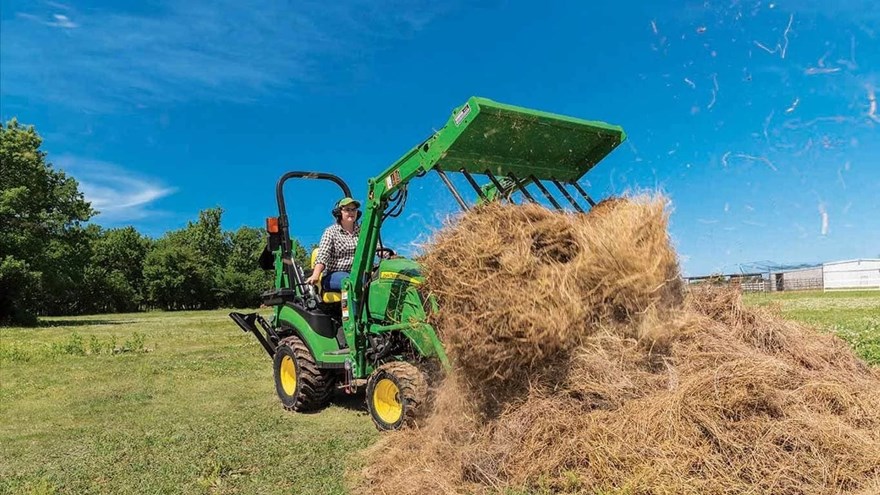

Designed for durability, the AM20F comes with spears located at the bottom, facilitating efficient manure handling. Its robust construction ensures long-lasting performance in demanding conditions, making it a reliable tool for farm operations.
Spears
| Location | Bottom |
| Size Diameter | 1.125 in. |
| Size Diameter | 2.9 cm |
| Spacing | 7.75 in. |
| Spacing | 19.7 cm |
Weight
| Operating | 167 lb. |
| Operating | 76 kg |
| Shipping | 204 lb. |
| Shipping | 92.5 kg |
Dimensions
| Width | 60 in. |
| Width | 152 cm |
| Height | 21.08 in. |
| Height | 54 cm |
| Depth | 24.7 in. |
| Depth | 63 cm |
| Cutting Width | 60 in. |
| Cutting Width | 152 cm |
Warranty
Attachment Carrier
| Current Series Style | 100, 200, 300 |
Additional Information
Setup Time
