Features
Improve Productivity with the Expandable Snow Blade

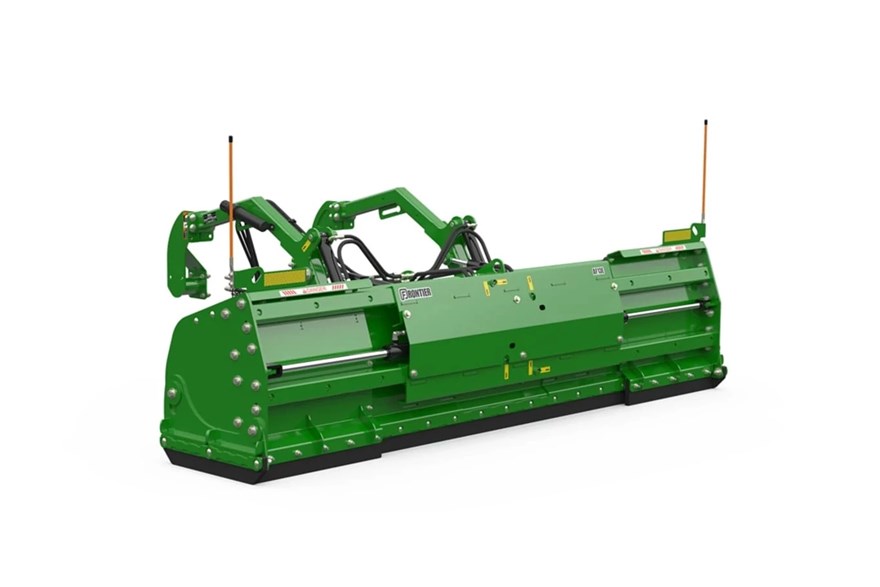

By reducing the number of passes and pulling snow from enclosed spaces, the AF13E Series Front Snow Blade makes quick work of snow-removal jobs. Using hydraulics to expand the blade horizontally, the blade has 6 to 10 ft (1.8 to 3.05 m) of working width, creating professional-grade results in less time.
Front-Mount Improves Capacity and Visibility
The AF13E Series Front Snow Blade articulates up to 10 degrees, mounts directly to the loader-mount and tractor frame, and uses dual mid-SVC hydraulics to cut costs and improve visibility.
Hydraulics Designed for Cold Temperatures
Designed for ultra-low temperatures, the AF13E hydraulic hoses use ultra-low temperature resistant synthetic rubber.
Dimensions
| Height, Blade | 736.6 mm |
| Weight, Blade | 1147 lb. |
| Weight, Hitch | 188.24 kg |
| Weight, Shipping | 2000 lb. |
| Depth, Blade | 685.8 mm |
| Height, Overall | 56 in. |
| Distance, Under The Ground | 6 in. |
| Width, Working Max | 125 in. |
| Distance, Bumper To Cutting Edge | 24.5 in. |
| Weight, Blade | 520.36 kg |
| Weight, Hitch | 415 lb. |
| Weight, Shipping | 907.18 kg |
| Height, Overall | 142.2 cm |
| Distance, Bumper To Cutting Edge | 622.3 mm |
| Width, Overall Max | 325.4 cm |
| Distance, To Ground Lifted | 533.4 mm |
| Width, Working Min | 77 in. |
| Weight, Operating | 1680 lb. |
| Distance, To Ground Lifted | 21 in. |
| Width, Overall Max | 128.13 in. |
| Height, Blade | 29 in. |
| Depth, Blade | 27 in. |
| Width, Working Min | 195.5 cm |
| Distance, Under The Ground | 152.4 mm |
| Width, Working Max | 317.5 cm |
| Weight, Operating | 761.79 kg |
Frame
| Thickness, Frame | 0.25 in. |
| Thickness, Frame | 6.35 mm |
| Harness Tube | 3 x 3 in. |
Skid Shoes
| Height, Skid Shoe Cutting Edge | 5 in. |
| Type, Skid Shoe | UHMW |
| Height, Skid Shoe Cutting Edge | 127 mm |
| Skid Shoe Adjustment | -2 @ 8 |
| Skid Shoe Adjustment | 76.2x76.2 |
| Thickness, Skid Shoe Cutting Edge | 25.4 mm |
| Thickness, Skid Shoe Cutting Edge | 1 in. |
Hydraulic Cylinders
| Double Extension Hydraulic Cylinders | 3 x 24 |
| Extension Hydraulic Flow Divider Block | Yes |
| Lift Hydraulic Ground Clearance | 508 mm |
| Double Lift Hydraulic Cylinders | 2 x 10 |
| Lift Hydraulic Ground Clearance | 20 in. |
Cutting Edge
| Cutting Edge Type | UHMW |
| Height, Cutting Edge | 5 in. |
| Height, Cutting Edge | 127 mm |
| Thickness, Cutting Edge | 1 in. |
| Thickness, Cutting Edge | 25.4 mm |
Weight
| Operational Weight | 1680 lb. |
| Operational Weight | 761.79 kg |
| Shipping Weight | 2000 lb. |
| Shipping Weight | 907.18 kg |
General
| Tractor Power Requirements (Min.-Max.) | 33.56-55.93 kW |
| Tractor Power Requirements (Min.-Max.) | 45-75 hp |
| Working Depth Control | Hydraulic |
| Type | Inverted |
