Features
Heavy-Duty Frame for Long, Dependable Implement Life

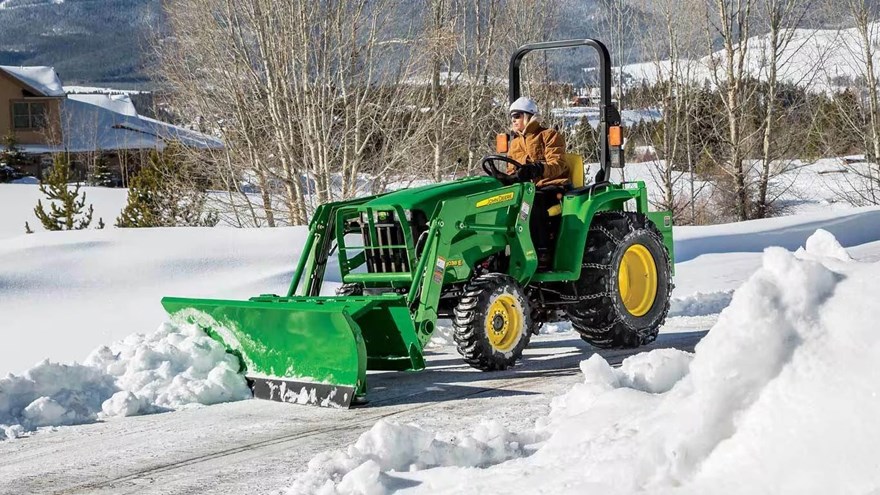

The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.
Twice the Durability and Work Life With Reversible Cutting Edges
The heat-treated steel cutting edge on the Frontier™ AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.
Hydraulic Angle Adjustment for Hard-to-Reach Places
The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.
Dimensions
| Width | 108 in. |
| Width | 274.3 cm |
| Height | 32 in. |
| Height | 81.3 cm |
| Depth | 55 in. |
| Depth | 139.7 cm |
| Cutting Width | 108 in. |
| Cutting Width | 274.3 cm |
| Weight, Shipping | 1295 lb. |
| Weight, Shipping | 587.4 kg |
| Weight, Operating | 1245 lb. |
| Weight, Operating | 564.7 kg |
Skid Shoes
Weight
| Operational Weight | 1245 lb. |
| Operational Weight | 564.7 kg |
| Shipping Weight | 1295 lb. |
| Shipping Weight | 587.4 kg |
Hydraulic Cylinders
| Hydraulic Cylinder Type | Two double-acting |
Moldboard
| Moldboard Thickness | 0.13 in. |
| Moldboard Thickness | 3.4 mm |
| Moldboard Thickness | 10 gauge |
| Moldboard Height | 31.8 in. |
| Moldboard Height | 808 mm |
Setup Time
| Setup Time Labor Hours | 0.5 hr |
Warranty
| Warranty Time Period | One year |
Attachment Carrier
| Current Series Style | Global |
Angle/Pivot
| Angle/Pivot Standard Adjustment | Hydraulic |
| Angle/Pivot Degrees (Each Side) | 30 |
