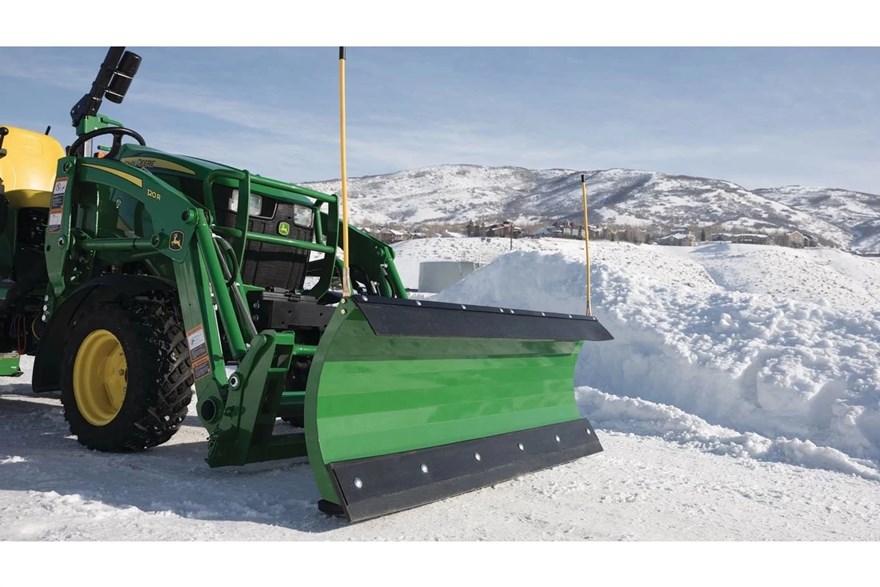

Features
Twice the Durability and Life with Reversible Cutting Edge
The reversible cutting edge enhances performance and extends working life. For improved performance on textured surfaces, the urethane cutting edge is available.
Skid Shoes Prevent Ground Gouging
The steel skid shoe extends the life of the cutting edge while avoiding damage to the working surface. To prevent damage to textured surfaces while prolonging the life of the cutting edge, urethane skid shoes are available.
Trip-Edge Protection Prolongs Working Life
The trip edge protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.
Dimensions
| Height | 21 in. |
| Height | 53.3 cm |
| Cutting Width | 151.3 cm |
| Cutting Width | 59.6 in. |
| Depth | 67.3 cm |
| Depth | 26.5 in. |
| Width | 151.3 cm |
| Width | 59.6 in. |
| Weight, Shipping | 98.4 kg |
| Weight, Shipping | 217 lb. |
| Weight, Operating | 77.6 kg |
| Weight, Operating | 171 lb. |
Skid Shoes
Weight
| Operational Weight | 171 lb. |
| Operational Weight | 77.6 kg |
| Shipping Weight | 217 lb. |
| Shipping Weight | 98.4 kg |
Hydraulic Cylinders
| Hydraulic Cylinder Type | None |
Moldboard
| Moldboard Height | 53.3 mm |
| Moldboard Height | 21 in. |
| Moldboard Thickness | 12 gauge |
| Moldboard Thickness | 2.8 mm |
| Moldboard Thickness | 0.109 in. |
Setup Time
| Setup Time Labor Hours | 0.5 hr |
Warranty
| Warranty Time Period | 2 year |
Attachment Carrier
| Current Series Style | H120 and H130 |
Angle/Pivot
| Angle/Pivot Degrees (Each Side) | 31 and 60 degree (angle) |
| Angle/Pivot Standard Adjustment | Manual |
