Features
Super-Quick Connection
This grapple bucket features a super-quick connection system compatible with current 600 and 700 Series Loaders. Its global attaching systems make it easy to line up and lock into place, facilitating swift operational readiness.
Field-Installed Bolt-On Cutting Edge Kits
This feature offers field-installed bolt-on cutting edge kits as replacement blades for the AD12 series, providing flexibility and ease of maintenance with blade sizes matching various bucket dimensions.
Heavy-Duty Steel Grapples

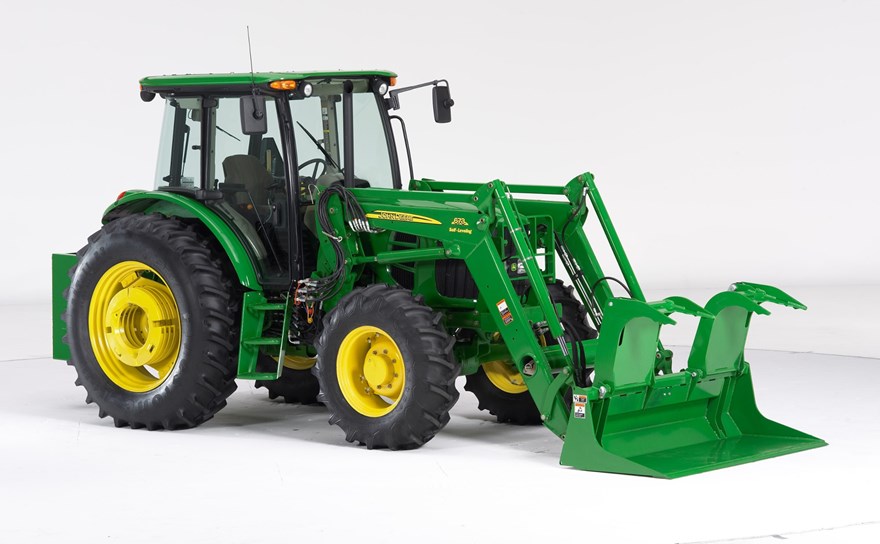

Constructed from heavy-duty steel, the AD12G Series Grapple Bucket is engineered to resist bending and offer longer wear capability. Its slim design enhances visibility and allows for handling large, heavy items effectively.
Dimensions
| Width | 77 in. |
| Width | 195.6 cm |
| Height | 29 in. |
| Height | 73.7 cm |
| Depth | 39 in. |
| Depth | 99.1 cm |
| Cutting Width | 76 in. |
| Cutting Width | 193 cm |
| Clam Opening | 39.4 in. |
| Clam Opening | 100.1 cm |
Weight
| Operational Weight | 1080 lb. |
| Operational Weight | 489.9 kg |
| Shipping Weight | 1130 lb. |
| Shipping Weight | 512.6 kg |
Hydraulic Cylinders
| Hydraulic Cylinders Type | Two double-acting |
Clamp force
| Clamp Force Closed | 1500 lb-ft |
| Clamp Force Closed | 6672.3 N |
Warranty
| Warranty Time Period | 1 year |
Attachment Carrier
| Current Series Style | Global |
Setup Time
| Set-Up Time Labor Hours | 0.25 hr |
