John Deere Products / Tractors / Tractor Attachments and Implements / 595

595

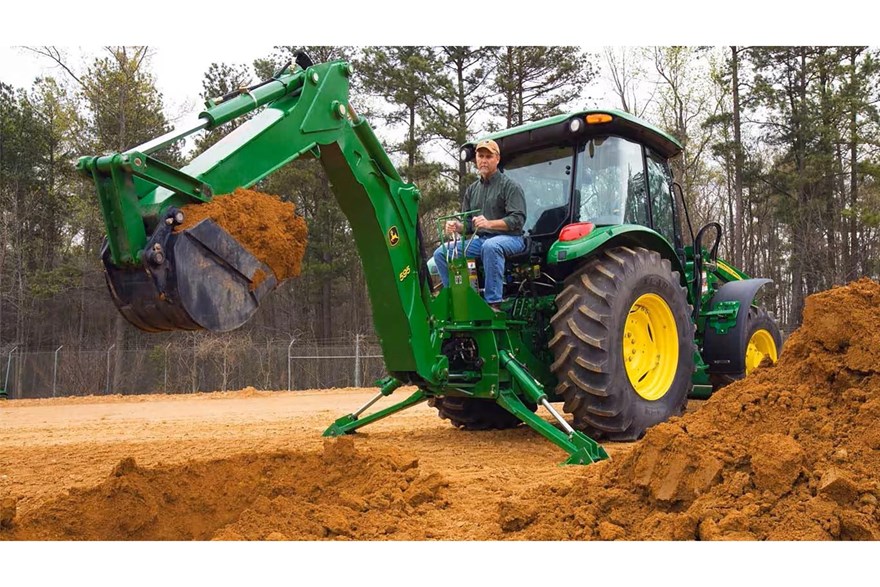

The John Deere 595 Backhoe offers unmatched versatility and performance, featuring strong sub-frame stability, smooth hydraulic operation, and a range of bucket options for optimal productivity across various terrains and tasks.

Full 180-Degree Swing
Quik-Tatch Mounting System
Convenient Operation
Comfortable Operator's Area

Send to a Friend

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Your Name*

Your Email*

Friends Email*

Payment Calculator

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Features
Specs

Features

Full 180-Degree Swing

Rear right view of a 595 backhoe on grass in front of a wall with boom and bucket curled up in transport mode

This backhoe features a full 180-degree swing, enhancing trenching productivity by allowing operations perpendicular to the tractor's centerline. Its double-acting swing cylinders ensure compact, stable design, providing extra torque for backfilling tasks.

Four-Bar Linkage System

Side right view of a 959 backhoe's back end, boom, and bucket in front of a dirt and grass hill

The backhoe's four-bar linkage system enables a full 180-degree bucket rotation. This design allows for efficient digging of straight walls and prevents material spills at loading heights, maximizing productivity during various excavation tasks.

Quik-Tatch™ Subframe Mounting

Studio close-up of a backhoe's Quik-Tatch subframe for 5 series tractors

The Quik-Tatch™ subframe allows the backhoe to securely mount onto 5 Series Tractors, delivering essential stability by reducing unwanted vertical or side-to-side movement. This mounting also protects the tractor chassis by effectively coupling the tractor with the backhoe for optimal weight distribution.

Dimensions

Transport Height	8.67 ft
Undercut	22 in.
Transport Overhang	5.08 ft
Reach From Center Line of Swing Pivot	3.63 m
Stabilizer Type	Hydraulic
Loading Height (Bucket at 60 Degrees)	2.5 m
Digging Depth	2.84 m
Loading Reach (Bucket at 60 Degrees)	5.08 ft
Stabilizer Spread Width - Up	5.33 ft
Stabilizer Spread Width - Down	2.95 m
Transport Height	2.64 m
Undercut	33.5 cm
Transport Overhang	1.55 m
Reach From Center Line of Swing Pivot	11.92 ft
Digging Depth	9.33 ft
Loading Reach (Bucket at 60 Degrees)	1.55 m
Loading Height (Bucket at 60 Degrees)	8.17 ft
Stabilizer Spread Width - Up	1.63 m
Stabilizer Spread Width - Down	9.67 ft

Backhoe

Hydraulic Relief Setting	2400 psi
Hydraulic Relief Setting	16547 kPa
Boom Lift Capacity	410.5 kg
Boom Lift Capacity	905 lb.
Swing Arc	180 degree (angle)
Bucket Rotation	180 degree (angle)
SAE Bucket Digging Force	5532 lbf
SAE Bucket Digging Force	24608 N
SAE Dipperstick Digging Force	3065 lbf
SAE Dipperstick Digging Force	13634 N

Bucket

Bucket Widths	14, 18, 24, 36, 40 in.
Bucket Widths	35.6, 45.7, 61, 91.4, 101.6 cm
