Features
Heavy-Duty Drive System
Utilizing a telescoping drive shaft, the heavy-duty cast-iron helical gearcase maximizes engine horsepower, enabling excellent throwing capacity. This drive system ensures sustained performance during snow removal operations, enhancing overall efficiency and reliability.
Strong Front 3-Point Hitch
Featuring a front 3-point hitch, the blower allows for quick and secure attachment. Designed with robustness for strength and durability, this hitch enhances maneuverability and tool-free implement changes, ensuring consistent operation over varied terrain.
Two-Stage Design for Deep Snow

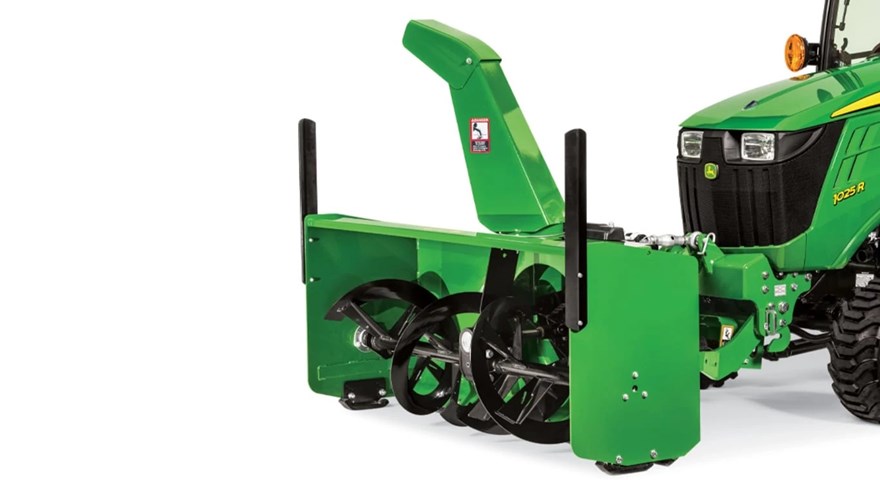

The 54-in. (137.2 cm) Heavy-Duty Snow Blower's two-stage design effectively manages deep snow, using a low-speed auger to gather snow and deliver it to the high-speed impeller for discharge. This configuration increases snow processing, making it highly efficient in challenging winter conditions.
Scraper Blade
| Type | Reversible and replaceable |
Spout
| Diameter | 7.25 in. |
| Diameter | 184 mm |
| Rotation | 200 degree (angle) |
| Rotation Control | Hydraulic remote control |
Dimensions
| Overall Width | 56.4 in. |
| Overall Width | 1433 mm |
| Clearing Width | 54 in. |
| Clearing Width | 1372 mm |
| Height Of Opening | 23 in. |
| Height Of Opening | 584 mm |
| Housing Thickness | 0.075 in. |
| Housing Thickness | 1.9 mm |
| Side Panel Thickness | 0.25 in. |
| Side Panel Thickness | 6.35 mm |
| Height To Top Of Chute Deflector | 51.8 in. |
| Height To Top Of Chute Deflector | 1315 mm |
| Housing Depth | 17 in. |
| Housing Depth | 432 mm |
Auger
| Auger Diameter | 16 in. |
| Auger Diameter | 406 mm |
| Auger Speed | 189-199 rpm |
| Auger Drive | Splined-coupler PTO shaft to helical gearcase |
| Auger Drive Gearbox | Cast-iron worm gearcase with 1.25-in. (32-mm) output shafts |
| Auger Protection | Shear bolt for each auger half, four shell-mounted extra shear bolts |
Weight
| Approximate Weight | 421 lb. |
| Approximate Weight | 191 kg |
Setup Time
| Attaching Time | 4 min. |
| Removal Time | 3 min. |
Lift System
| Type | Hydraulic cylinder on front 3-point hitch |
Blower
| Speed | 898-943 rpm |
| Blower Fan Material | Welded steel |
| Blower Fan Size | 3.94 x 16 in. |
| Blower Fan Size | 100 x 406 mm |
| Bearing | Sealed ball bearings |
